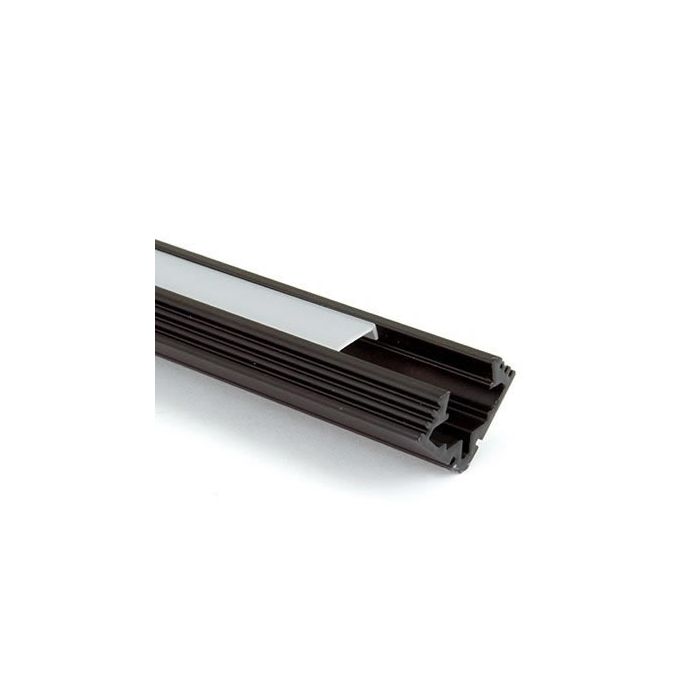

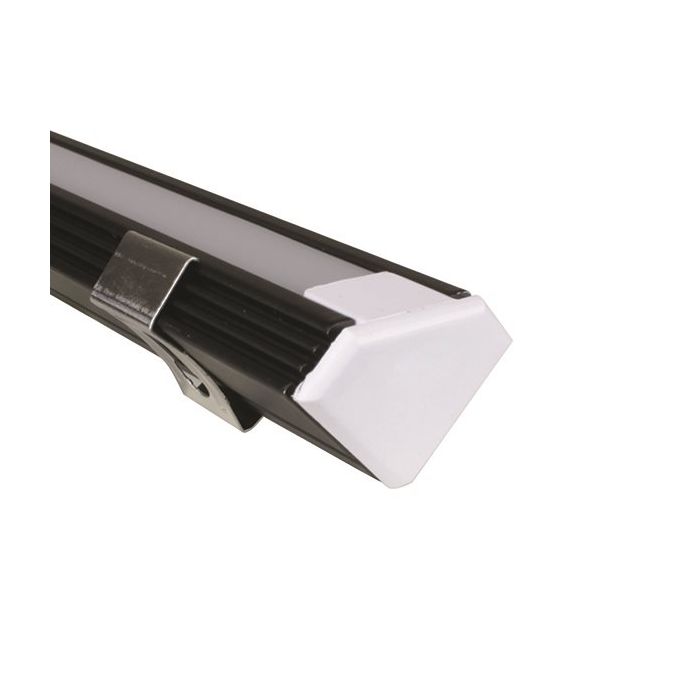

Black 1m 19mm Aluminium Extrusion Corner Profile For Led Flex

First-Av.co.uk 1m Black Kit 19mm Aluminium Corner Profile LEDAL11B LEDAL11B

Aluminium track from Penn Elcom LED to be used with OSRAM LINEARlight Flex or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT

• LEDAL11A1MB - 1M black aluminium extrusion
• LEDAL11DC1M - 1M diffuse cover
• LEDAL11EC - End Cap without hole
• LEDAL11ECH - End Cap with hole for cable entry
• LEDAL11MB - 2 x mounting brackets

Features:

• Aluminium anodized track for LED Flex or LED modules
• Thick base for high wattage LED strips
• Easy and fast assembly and connection.
• Inclined at 45 degrees
• Suitable for LED strips not wider than 13 mm
• Excellent heat sink providing long life and reliability for LED
• Easy installation of the LED Flex or modules
• 1 year Warranty.

Application area:

• Edge lighting
• Strip lighting
• Cove lighting
• Anywhere LED Flex or an LED module needs extra support.

Other options/accessories available:

• LEDAL11 - 1M grey anodized aluminium KIT
• LEDAL11M2 - 2M grey anodized aluminium KIT
• LEDAL11M2B - 2M black KIT
• LEDAL11W - 1M white KIT
• LEDAL11M2W - 2M white KIT

Suitable for the Flex strips not over 13 mm.

• Height: 19 mm
• Length: 1000 mm
• Material: 6063 anodized aluminium
• Warranty: 1 year
• Width (Interior): 13.2 mm
• Width (Opening): 11.2 mm
• Base thickness: 3 mm
• Base colour: Black
• Cover material: PC
