1m Kit 19mm Aluminium Corner Profile Ledal11

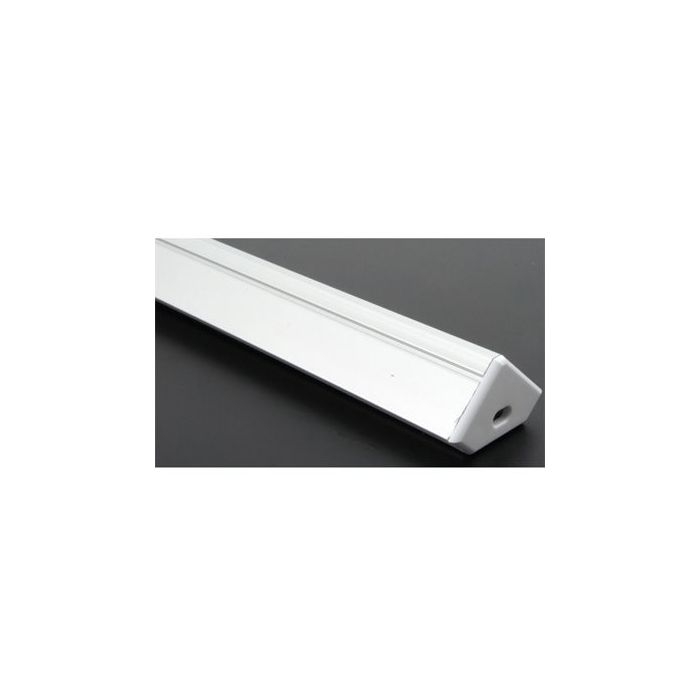

Penn Elcom 1m Kit 19mm Aluminium Corner Profile LEDAL11 LEDAL11

Aluminium track from Penn Elcom LED to be used with OSRAM LINEARlight Flex or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT

LEDAL11A1M - 1M anodized aluminium extrusion
LEDAL11DC1M - 1M diffuse cover
LEDAL11EC - End Cap without hole
LEDAL11ECH - End Cap with hole for cable entry
LEDAL11MB - 2 x mounting brackets

Features:
+ Aluminium anodized track for LED Flex or LED modules
+ Thick base for high wattage LED strips
+ Easy and fast assembly and connection.
+ Inclined at 45 degrees
+ Suitable for LED strips not wider than 13 mm

Advantages:
+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty.

Application area:
+ Edge lighting;
+ Strip lighting;
+ Cove lighting;
+ Anywhere LED Flex or an LED module needs extra support.

Other options/accessories available:

LEDAL11B - Black version
LEDAL11W - White version
LEDAL11M2 - 2M anodized version (grey)
LEDBRKT02B - Special black bracket (for angle adjustment). Comes in pair.

Suitable for the Flex strips not over 11 mm.

Height: 19 mm
Length: 1000 mm
Material: 6063 anodized aluminium
Warranty: 1 year
Width (Interior): 13.2 mm
Width (Opening): 11.2 mm
Base thickness: 3 mm
Cover material: PC

LED shown in images for illustration purposes and is not included in profile
