1m Kit 15mm Recessed Aluminium Profile Ledal14

Comus 1m kit 15mm Recessed Aluminium Profile LEDAL14 LEDAL14

Aluminium track from Penn Elcom LED to be used with OSRAM LINEARlight Flex or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT

LEDAL14A1M - 1M anodized aluminium extrusion
LEDAL14DC1M - 1M diffuse cover
LEDAL14EC - End Cap without hole
LEDAL14ECH - End Cap with hole for cable entry
LEDAL14MB - 2 x mounting brackets

Features:
+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection
+ Suitable for LED strips not wider than 12mm

Advantages:
+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty.

Application area:
+ Edge lighting;
+ Strip lighting;
+ Cove lighting;
+ Anywhere LED Flex or an LED module needs extra support.

Other options available:

LEDAL14B - Black version
LEDAL14W - White version
LEDAL14M2 - 2M anodized version (grey)

Suitable for the Flex strips not over 12 mm.

Height: 15 mm
Length: 1000 mm
Material: 6063 anodized aluminium
Warranty: 1 year
Width (Base): 17.5 mm
Width (Interior): 12.2 mm
Width (Exterior): 25 mm
Base thickness: 0.8 mm
Cover material: PC

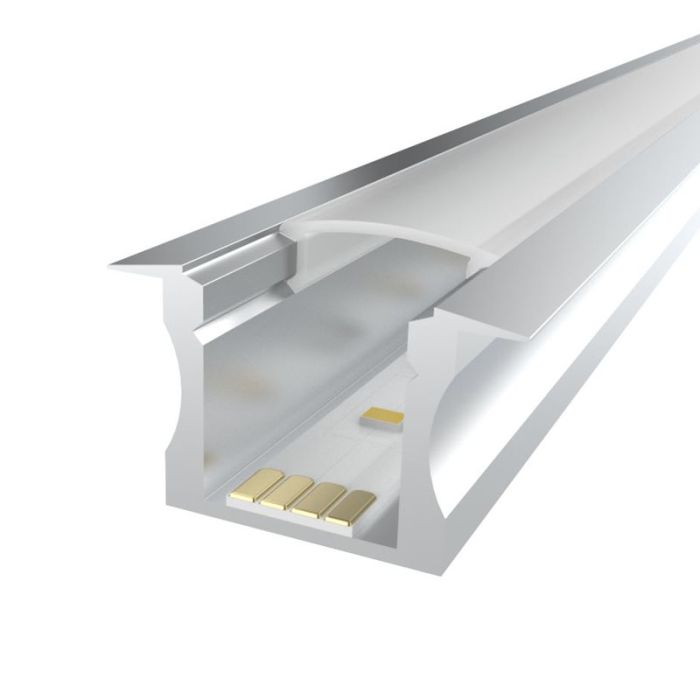

LED shown in images for illustration purposes and is not included in profile
