1m Kit 12.2mm Recessed Aluminium Profile Ledal08

Comus 1m Kit 12.2mm Recessed Aluminium Profile LEDAL08 LEDAL08

Aluminium track from Penn Elcom LED to be used with OSRAM LINEARlight Flex or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT

LEDAL08A1M - 1M anodized aluminium extrusion
LEDAL08MC1M - 1M milky white cover
LEDAL08EC - End Cap without hole
LEDAL08ECH - End Cap with hole for cable entry
LEDAL08MB - 2 x mounting brackets

Features:
+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection.

Advantages:
+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty.

Application area:
+ Edge lighting;
+ Strip lighting;
+ Cove lighting;
+ Anywhere LED Flex or an LED module needs extra support.

Other options available:

LEDAL08B - Black version
LEDAL08W - White version
LEDAL08M2 - 2M anodized version (grey)

Suitable for LED strips not wider than 12 mm

Height: 7 mm
Length: 1000 mm
Material: 6063 anodized aluminium
Warranty: 1 year
Width (Internal): 12.2 mm
Width (External): 17.5 mm
Cover material: PC
Base thickness: 1.1 mm

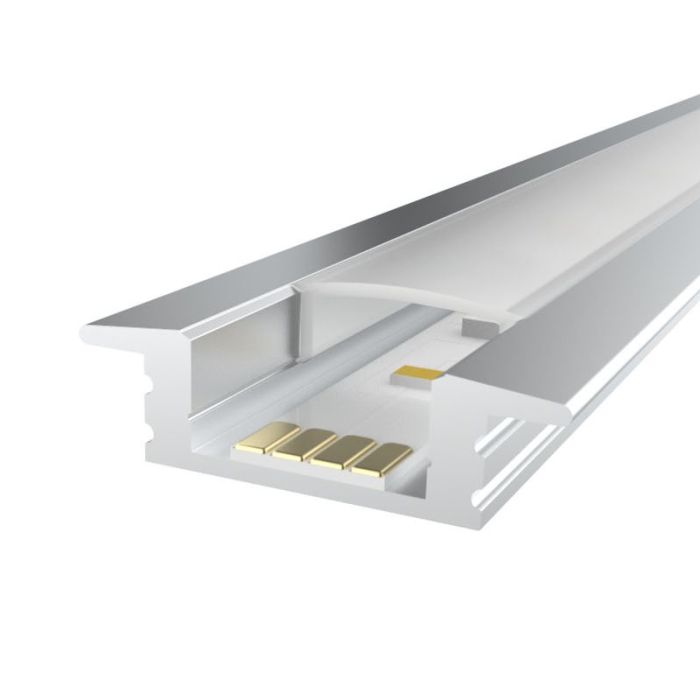

LED shown in images for illustration purposes and is not included in profile
