Corner Brace, Large Tight Radius Offset 51.4mm X 47mm, B1123

Penn Elcom Corner Brace Large Tight Radius Offset 51.4mm x 47mm B1123

Corner Brace Large Tight Radius Offset

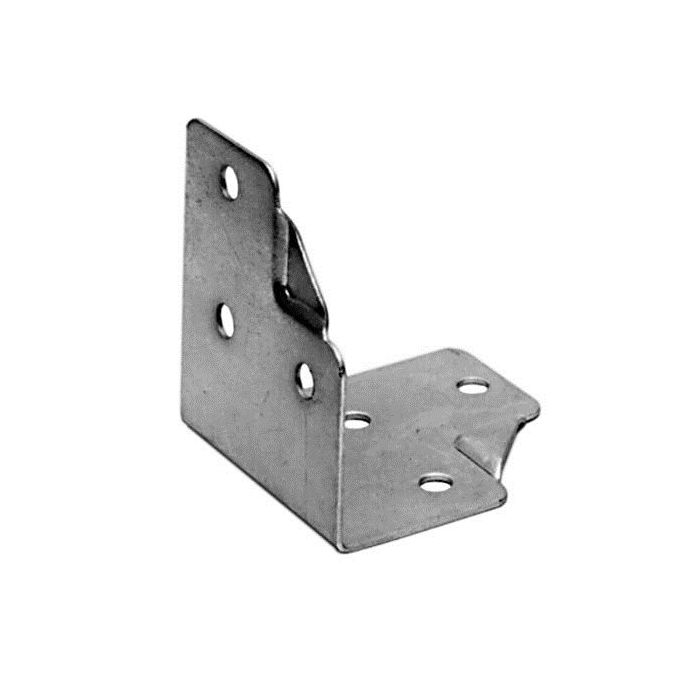

B1123 is a large 6-hole flight case corner brace with a tight radius, offset for extrusions. Flight case braces are a small but major component when assembling any flight case. These braces secure the flight case panels together and reinforce the edges.

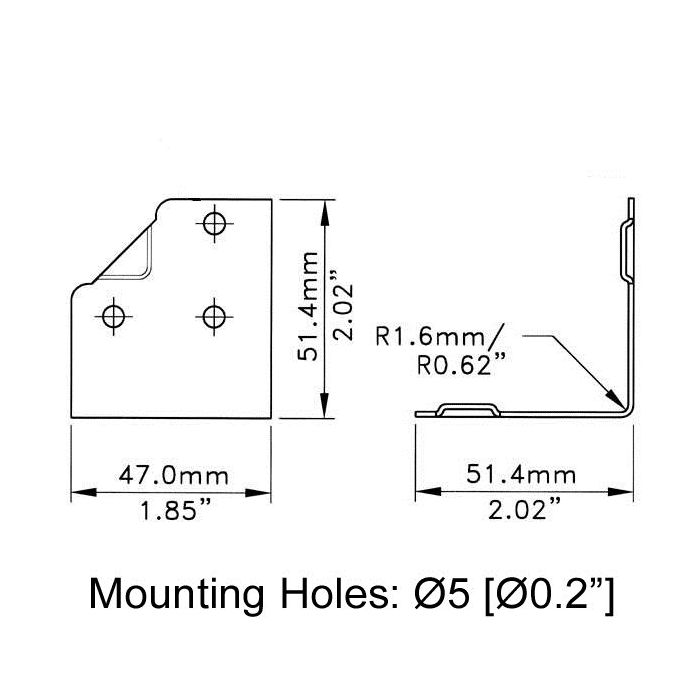

Dimensions:

• 51.5mm x 47mm x / 2" x 1 7/8"
• Internal Radius: 2mm / 0.08"
• Finish: PennBrite
• Offset: Yes
• Material: 1.2mm / 18 gauge Steel
• Weight: 0.037Kg / 0.082Lb / 0.99oz
• Diameter of mounting holes: 5mm / 0.2"

Also available in:

• Zinc - B1123EZ
• Black - B1123K
• Stainless Steel - B1123S

Suitable for use with the following extrusions: E0850/2000, E0885/2000, E0825/2000, E0826/2000, E0875/2000, E0876/2000.
