Penn Elcom B1124: 40x30mm Corner Brace with Ribs
B1124 Corner Brace Large with Strengthing Ribs 40mm x 30mm, B1124 By Penn Elcom
Penn Elcom B1124: 40x30mm zinc-plated steel corner brace with strengthening ribs. Ideal for flight cases and structural reinforcement.
Product Description
Penn Elcom B1124 Corner Brace Large with Strengthing Ribs 40mm x 30mm B1124

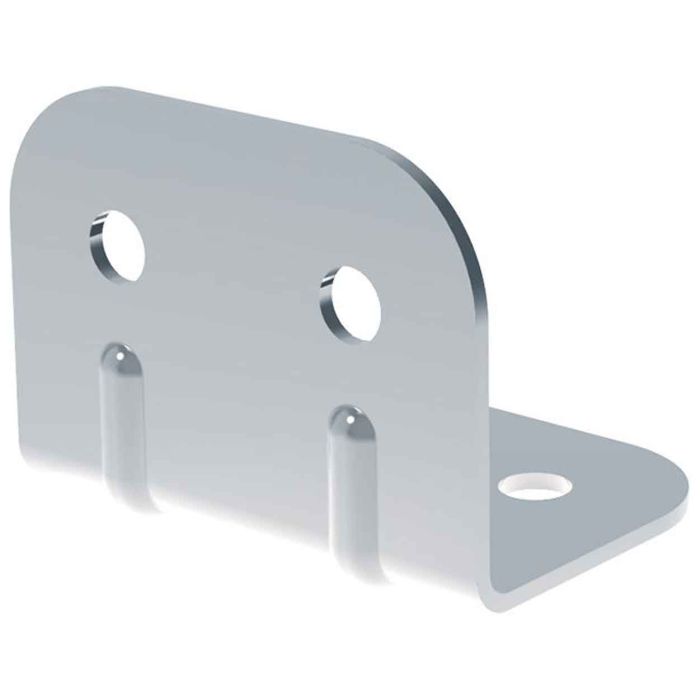

The Penn Elcom B1124 is a robust corner brace measuring 40mm x 30mm, crafted from 1.5mm thick steel with a zinc-plated finish. Designed with strengthening ribs, it offers enhanced durability and support, making it ideal for reinforcing corners in flight cases, cabinets, and various structural applications. The brace features four pre-drilled holes for easy installation and a sleek design that complements professional setups.
Corner Brace Large with Strengthing Ribs
Large Steel Corner Brace with Strengthening Ribs 40mm x 30mm B1124. Cover gaps and join areas where corner angles and tongue & groove extrusions meet. This is an offset brace for 27mm extrusions.
Dimensions:
- 29mm x 40mm
- nternal Radius: 2mm
Specifcations
- Material: 1.2mm / 18 gauge Steel
- Finish: PennBrite
- Weight: 0.02Kg / 0.044Lb
- Radius Details: Upper section with tight radius, Lower section (with 5mm radius, Offset for 27mm Extrusions)
- Fixing Holes: 5mm
- Rivets Required For Installation: 4
- Offset: Yes
Additional Information
- SKU
- FAV-B1124
- Brand
- Penn Elcom
- Barcode
- 814953021346
- Manufacturer Code
- B1124
