Warm White 5m/reel Cob (dotless) Strip 5w 27k 24v Flscb1- 0g1cb11

fossLED Warm White 5m/reel COB (Dotless) Strip 5w 27k 24v FLSCB1- 0G1CB11 LEDFLCOB5W27K

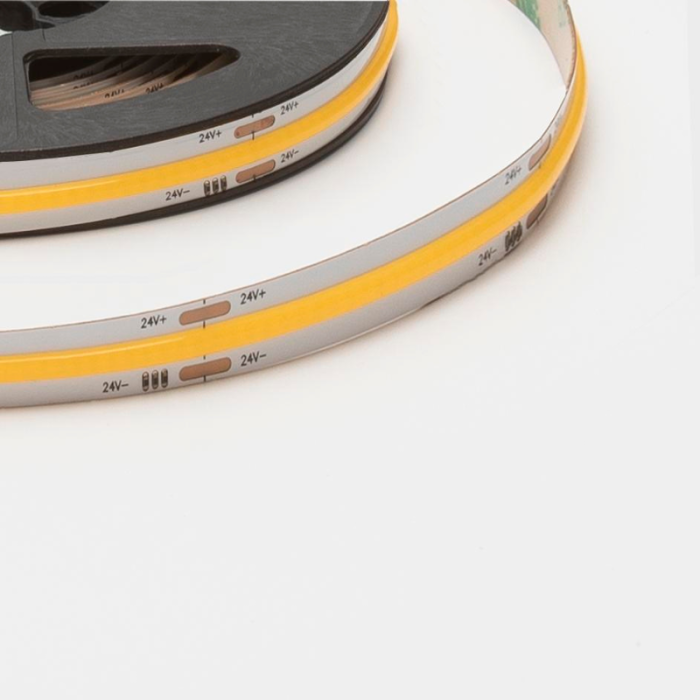

The FossLED COB Series Strips are designed to offer a dotless Linear finish in all applications. This 5W per metre model features 480 SMD LEDs on a 2oz PCB board for a durable finish. Easy mounting thanks to added strength (3M 300LSE) self adhesive. Single binning for colour consistency.

Available accessories for easy install

Each reel comes supplied with a short cable tail soldered at one end from factory.

Electrical data

• Nominal voltage: 24.0 V
• Type of current: DC
• Nominal wattage per meter: 5.0 W
• Input voltage range: 23 25 V
• Light color LED: White
• Color rendering index Ra: >92
• Luminous flux per meter: 470 lm
• Luminous efficacy: 94 lm/W
• Standard deviation of color matching: =3 sdcm
• Color temperature: 2700 K
• Colour Sensation: Warm White

LED module information

• Number of LEDs per meter: 480
• Number of LEDs per smallest unit: 48

Dimensions & weight

• Length: 5000 mm
• Length - smallest unit: 50.0 mm
• Width: 8.00 mm
• Product weight/reel: 120 g

Temperatures and operating conditions

• Temperature range in operation at Tc point: -25 +80 DegC
• Ambient temperature range: -25 +45 DegC
• Temperature range at storage: -40 +80 DegC

Lifespan

• Nominal lamp life time: 50000 h
• Lumen main.fact.at end of nom.life time: L80

Capabilities

• Dimmable: Yes
• Lowest bending radius: 20 mm

Certificates and standards

• Standards: CE/UK-CA/RoHS
• Type of protection: IP20
• Energy efficiency class of the contained light source: F
• Commodity code: 8539510000
