Led Single Colour 1zone Rf Remote And Receiver Lr-wn+r3c

Teucer Led Single Colour 1zone RF Remote and Receiver LR-WN+R3C LEDLRWN

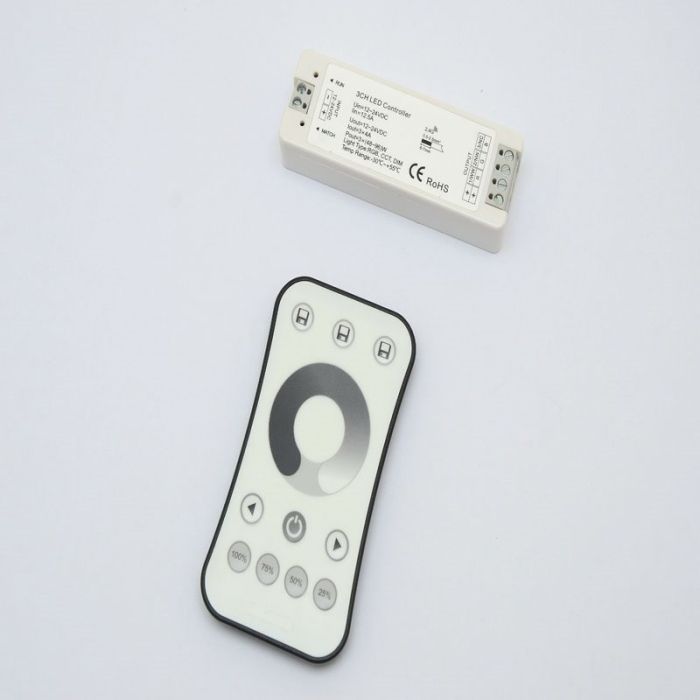

LR-WN and R3C - 1 zone RF controller and receiver (LEDR3C) for Single Colour LED strips

Product Description:

The LR-WN remote enables control of 1 zone of single colour LED strip.

Featuring a scroll wheel which enables the user to adjust the brightness of the connected LED strip.

The remote also features preset brightness levels.

Products Features:

1 zone single colour controller

Scroll wheel for easy brightness adjustment

Smooth dimming capacity

4 preset dimming levels (100%, 75%, 50%, 25%)

Can control more than 1 receivers

2.4GHz wireless technology, enabling remote distance of up to 30m

Operates with an LED indicator light for ease of use

PWM dimming enables flicker-less dimming

Manufacturers Code (remote): LR-WN

Manufacturers Code (receiver): R3C

Remote Type: RF

Receiver Type: RF

Input Voltage (remote): 3 Vdc

Input Voltage (receiver): 12-24 Vdc

Operation Frequency (remote): 2.4GHz

Length (remote): 107 mm

Length (receiver): 97 mm

Width (remote): 58.5 mm

Width (receiver): 33 mm

Height (remote): 9 mm

Height (receiver): 18 mm

Power (remote): battery CR2032

Output current (receiver): 3x 4 A

Output Power (receiver): 3x (48/96 W)

IP rating (remote): 20

IP rating (receiver): 20

Dimmable (receiver): Yes

Output dimming pathern (receiver): PWM

Dimming range (receiver): 0-100 %

Current per circuit: 12 A

Fixture (receiver): double side tape

Max RF range: 30 m

Recommended RF range: 10 m

Warranty: 3 Years

Radio Frequency: 2.4 GHz
