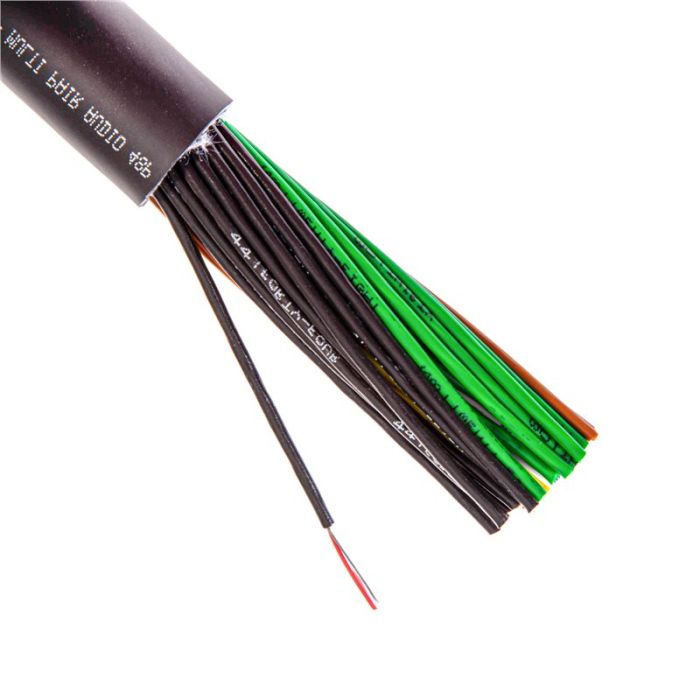

Studio Series Multicore Cable for DMX & Analogue (48 pair)

Our tour-grade range of flexible sheathed multicore cables, individually jacketed and screened for noiseless digital and analogue transmission. With a wide selection of cores, this range is the ideal choice for professional audio applications such as event, install and studio cabling.

Available in 6, 8, 12, 20, 24, 28, 36, 42, 48 and 56 pair.

Impedance: 90.5 Ohms/km
Insulation Resistance: 3000 MOhms x km
Capacitance: 55.50 nF/km
Conductor: Stranded copper wire AWG 24
Drain Wire: Stranded copper tin plated AWG 24
Pair Shield: Alu/PVC foil metal inside
Jacket: Soft PVC

Sold by the metre
