Strip-to-strip Connector For 8mm Cob Strips Flss8sml

fossLED Strip-to-strip connector for 8mm COB strips FLSS8SML LEDFLCOBS8SML

FLSS8SML

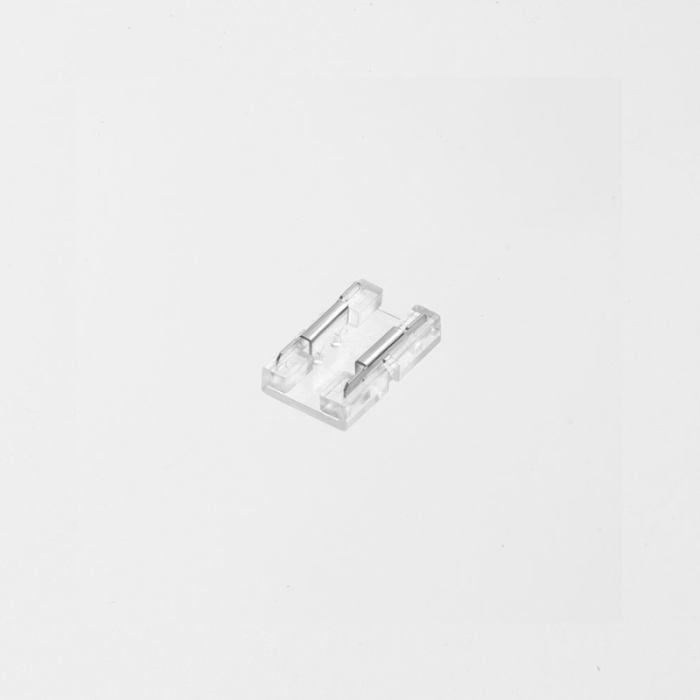

The FossLED innovative Mini connectors are compatible with all single colour 8mm strips and designed to fit into even the slimmest aluminium extrusions.
These joiners are used to connect two strips together; simply insert both strips into the corresponding terminals and crimp with pliers to pierce PCB components for a secure finish.

Use with the 5W COB FossLED strips in 2700K Warm White or 4000K Cool/Neutral White. Can join two off cuts as long as the combined length does not exceed 5m.

Product benefits
Reduced installation time
Can be connected at cutting points
Clear housing, allows light to shine thru it avoiding dark spots

Product Specification
Compatible Strips: ECO / COB
Strip PCB Width: 8mm
Voltage Range (DC): 3
24V
Max Load Rating (@ 24V): 96W
Max Current Rating: 4A
Dimensions (connector): L15.6 x W9.6 x H3.3mm
Product weight: 10 g
Reusable: No
IP Rating: IP20

Logistical data
Commodity code: 8536699099
