Snap Back Spring Shackle, H1435k

Penn Elcom Snap Back Spring Shackle H1435K

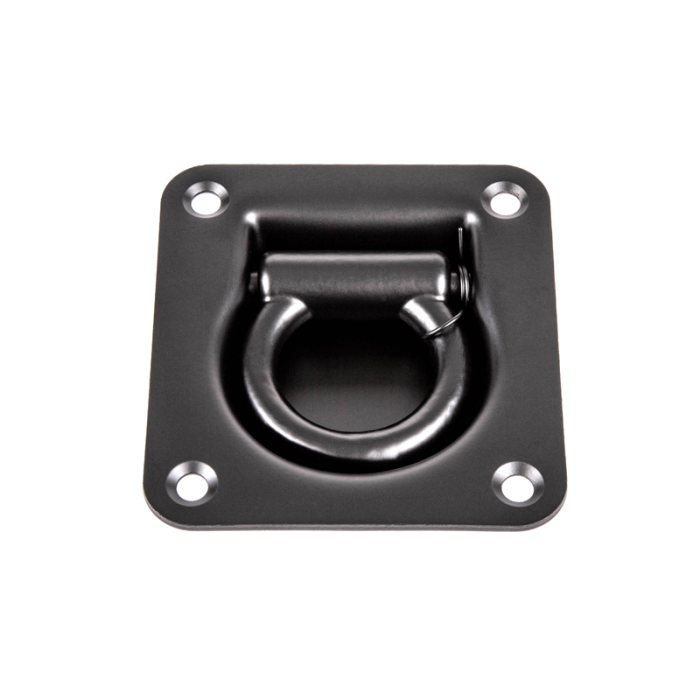

Penn Elcom H1435K Snap Back Spring Shackle D Ring Fixing

Mounts flush to the surface and provides a large flip-up ring to accept most tie-down fittings. Mounted flush in a flight case or trailer floor. The large flip-up ring is versatile enough to accept most strap fittings.

S.W.L 500Kg / 1100Lb when used with H1460

• Width: 95mm (3.75")
• Height: 101mm (3.97")
• Recess: 21mm (0.82")
• Fixing hole diameter: 7mm (0.27")
• Material: 2.5mm (3/32") Steel
