Quiet 3 Fan Tray for R4000/R5000 Racks (R4000-FT3)

£194.10
In stock
Only 19 left
SKU: FAV-R4000-FT3

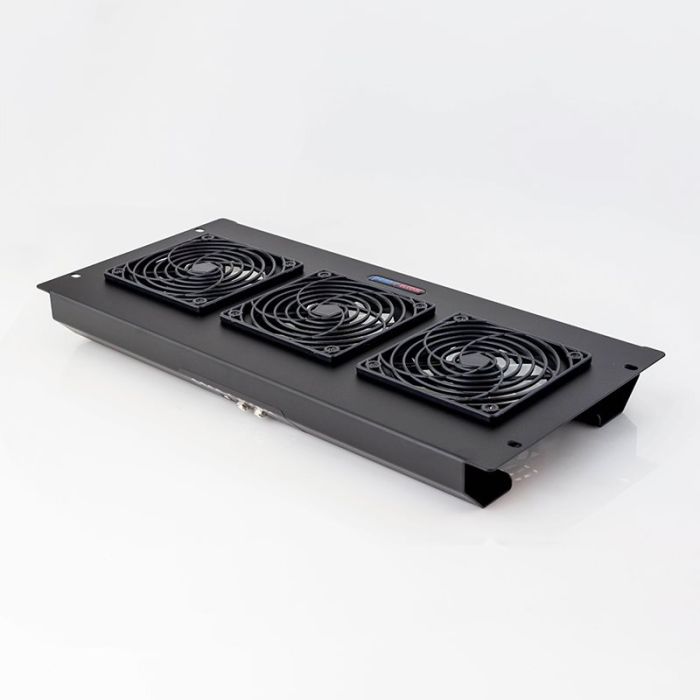

Quiet 3 Fan Tray for R4000/R5000 19-inch Racks R4000-FT3 By Penn Elcom

Enhance your R4000 or R5000 server enclosure's cooling efficiency with the Quiet 3 Fan Tray (R4000-FT3), featuring ultra-quiet operation and high airflow capacity.


Product Description

#html-body [data-pb-style=EQVUM5G]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}

Penn Elcom Quiet 3 Fan Tray for R4000/R5000 Racks R4000-FT3 R4000-FT3

The Quiet 3 Fan Tray (R4000-FT3) is specifically designed for use with R4000 and R5000 server enclosures, providing efficient cooling to maintain optimal operating temperatures for your equipment. Installed in the 10U top service area, it effectively extracts hot air and draws in cool air from the bottom inlets. The unit operates at a low noise level of 22.5dBA, ensuring minimal disruption in noise-sensitive environments. Equipped with three 9-bladed 120mm fans, it delivers an airflow of up to 444CFM at 1,350RPM. The fan tray operates on 12V DC and includes a universal power supply, making it suitable for various power sources. Additional features include DC in/out sockets, a temperature probe socket with a fixed 40°C (104°F) sensor, and an on/off rocker switch with a colored indicator. Constructed with fluid bearings, the fan tray, ensuring reliability and longevity.

Ultra-quiet 3 Fan Tray for use in Penn Elcom R4000 & R5000 Server Enclosures.

Designed to be fitted in the top of the rack to pull out the hot air and draw up cool air from the bottom inlets to achieve a chimney effect.

Technical Specification:

  • Low Noise 22.5dBA (0.3 Sone)
  • 222CFM (378m 3/h ) @ 1,350RPM
  • High Static Pressure
  • 3 x 9 Bladed 120mm Fans
  • 12V DC - 750mA
  • 2 x DC In/Out Sockets
  • Temperature Sensor Socket
  • DC in/out sockets
  • On/Off with a Coloured Indicator Rocker Switch
  • 1A worldwide universal PSU supplied
  • Designed to be Mounted in the R4000/R5000 10U Top Service Area
  • Finish: Black Powder Coated
  • Dimensions: (OD) 483mm x 222mm x 60mm (19 x 3/4 x 2 3/8) 5U
  • Weight: 2.3kgs / 5.07lbs
  • Fluid Bearings = 2 Year Limited Warranty


Additional Information

SKU
FAV-R4000-FT3
Brand
Penn Elcom
Barcode
840149902847
Manufacturer Code
R4000-FT3
