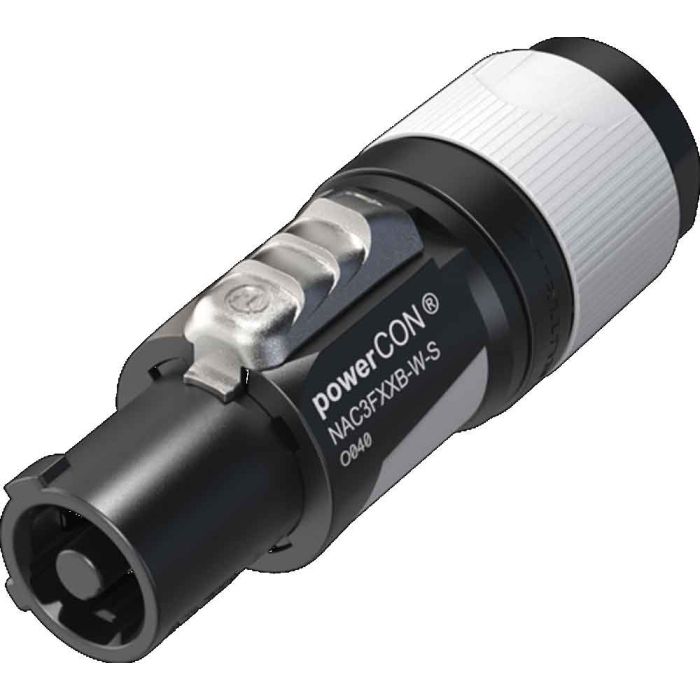

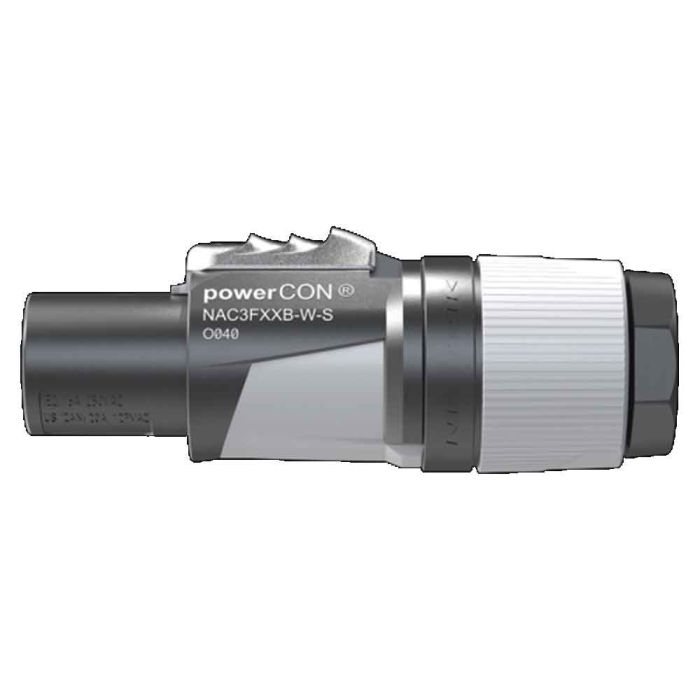

Powercon Mains Output 3 Pin 20a (6-12mm cable size) Connector, Neutrik NAC3FXXB-W-S

Locking AC mains cable connector, keyed and color coded (grey) for power-out, screw terminal assembly, for cable diameters 6 - 12 mm.

The Neutrik powerCON NAC3FXXB-W-S FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.

It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

• EC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
• Ergonomic design with slip-proof two-component molded housing
• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm
• Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
• Superior NEUTRIK quality standard, extremely robust and reliable
• Easy and reliable twist lock system
• Improved kink protection by two-component bushing

Technical Information

• Title NAC3FXXB-W-S
• Connector series powerCON blue/grey
• Contact resistance ≤ 2 mΩ
• Dielectric strength > 3 kVac (after mating cycles)
• Insulation resistance > 10 GΩ (initially)
• Number of electrical contacts 2 + PE
• Rating Europe EN 60320-1: 16 A 250 V AC, CBC
• Rating USA / Canada cUL 60320-1: 20 A 127 V AC, CBC
• Cable O.D. 6 - 12 mm
• Lifetime typically 5’000 mating cycles
• Wiresize (mm²) 1.5 – 2.5 mm²
• Wiresize (AWG) 16 – 12 AWG, see above cable list
• Locking device Twist lock
• Termination Screw type terminals
• Contact plating Ag
• Contacts Copper Alloy
• Insert Polyamide (PA6.6)
• Locking element Zinc diecast
• Shell Polyamide (PA6) / TPE
• Strain relief Polyketone
• Bushing Polypropylene / TPE
• Temperature range -33 °C to + 80 °C
• Protection class IP20
• Flammability acc. to UL94 V-0
