Penn Medium Mol Recessed Butterfly Latch Offset Bottom Half L9075/928

Medium MOL Recessed Butterfly Latch in Deep Dish with 27mm / 1 1/16 Offset on Bottom Half of the Dish

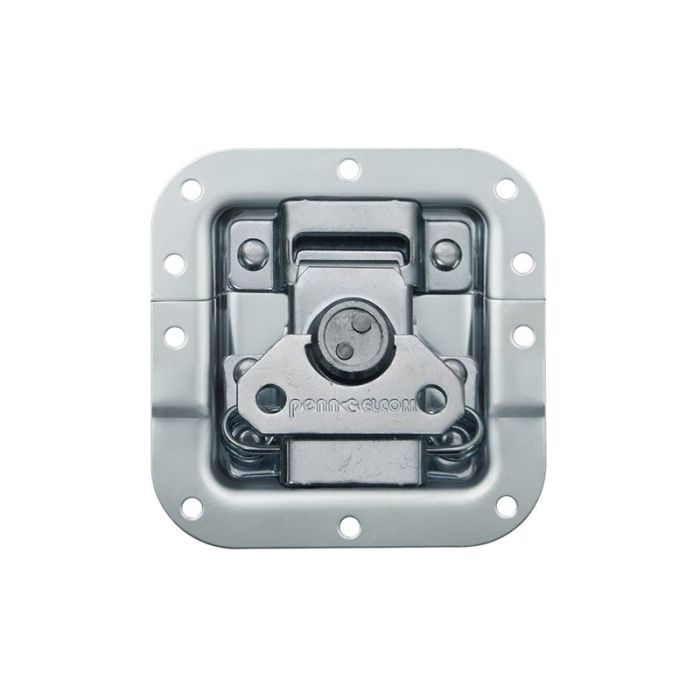

Securely close your case with a Penn Elcom MOL automatic positioning latch mounted in a medium recessed dish. For use on L9075/928

Medium MOL Recessed Butterfly Latch in Deep Dish with 27mm / 1 1/16 Offset on Bottom Half of the Dish

For use on small to medium-sized cases. The PennBrite zinc plating offers an excellent protection against corrosion with a distinctive bright Penn Elcom finish. A 27mm / 1 1/16 offset on the bottom half of the dish only, accommodates the corresponding edge extrusions and provides a flush and clean looking installation. Used when the top half of the latch is mounted on a Lidmaker extrusion.

Around the globe, the MOL name is synonymous with high quality and dependability. Invented in 1995, the MOL range of flight case latches revolutionized the industry and redefined standards in flight case locking. With its patented leaf-spring automatic opening system and its latch retainer that keeps the latch below the level of the dish while in the opened position, the MOL range has yet to be surpassed in terms of advancement, durability, or prominence.

Product Features:

• With Patented MOL Automatic Positioning Latch System
• Dish Width: 102mm / 4
• Dish Height: 105mm / 4 1/8
• Dish Depth: 13mm / 1/2
• Offset: 27mm / 1 1/16 on Bottom Half of the Dish Only
• Lockable: No
• Finish: PennBrite
• Material: 1.2mm / 18 gauge Steelv
• Weight: 0.23kg / 0.50lb
• Maximum Working Load Capacity: 90kg / 198.42lb

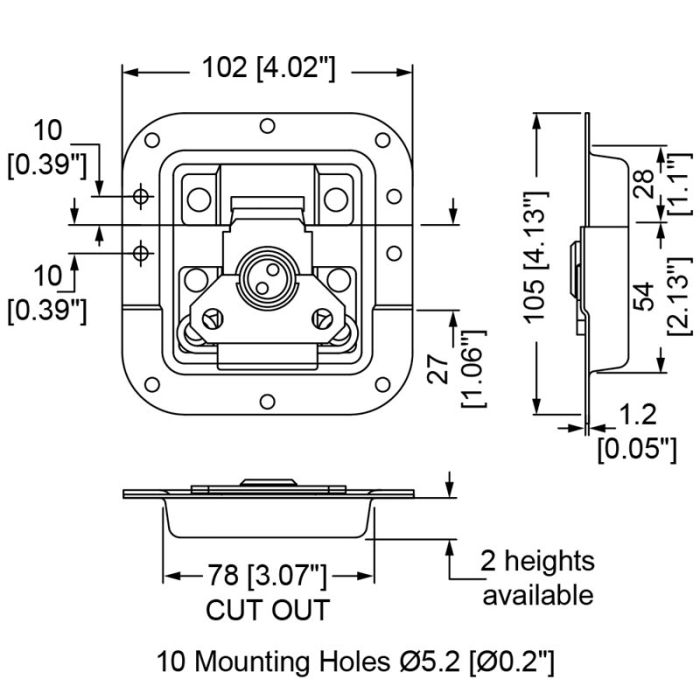

Installation Information:

• Panel Cut-Out Size:Cut-Out Width: 78mm / 3,Cut-Out Height: 54mm + 28mm / 2 1/8 + 1 1/8
• From Split to Hole Centre: 10mm / 3/8
• Mounting Holes: 10 x 5.2mm / 3/16
• Rivets Required for Installation: 10
• Suits L0906 Backplate
