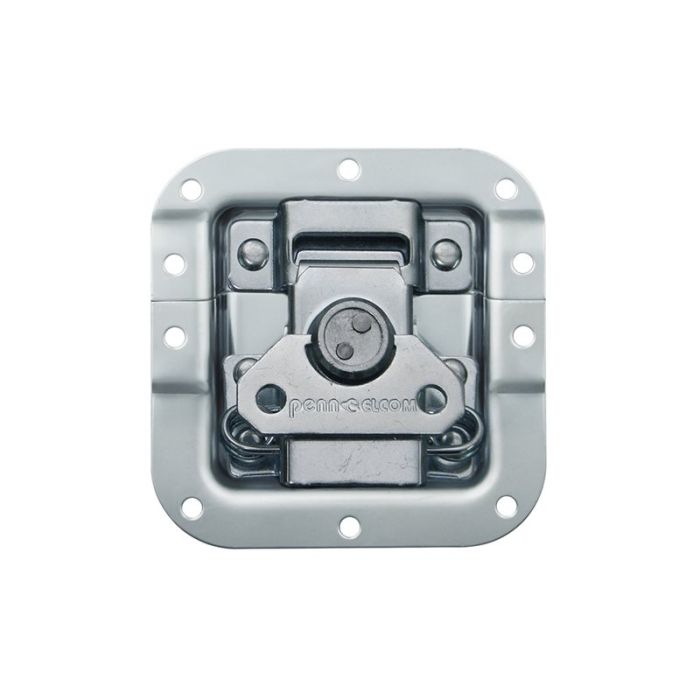

Penn Elcom Medium Mol Recessed Butterfly Latch Offset L978/928

Medium MOL Recessed Flightcase Butterfly Catch Latch in Deep 22mm / 7/8 Offset Dish

Securely close your flight case with a Penn Elcom MOL automatic positioning latch mounted in a medium recessed dish. For use on small to medium-sized cases. The Penn elcom L978/928 Medium MOL Recessed Butterfly Flightcase Catch Latch in Deep 22mm / 7/8 Offset Dish

The PennBrite zinc plating offers an excellent protection against corrosion with a distinctive bright Penn Elcom finish. A 22mm / 7/8 offset on each half of the dish accommodates the corresponding edge extrusions and provides a flush and clean looking installation.

Around the globe, the MOL name is synonymous with high quality and dependability. Invented in 1995, the MOL range of flight case latches revolutionized the industry and redefined standards in flight case locking. With its patented leaf-spring automatic opening system and its latch retainer that keeps the latch below the level of the dish while in the opened position, the MOL range has yet to be surpassed in terms of advancement, durability, or prominence.

Product Features:

• With Patented MOL Automatic Positioning Latch System
• Dish Width: 102mm / 4
• Dish Height: 105mm / 4 1/8
• Dish Depth: 13mm / 1/2
• Offset: 22mm / 7/8
• Lockable: No
• Finish: PennBrite
• Material: 1.2mm / 18 gauge Steel
• Weight: 0.23kg / 0.50lb
• Maximum Working Load Capacity: 90kg / 198.42lb

Installation Information:

• Panel Cut-Out Size:
• Cut-Out Width: 78mm / 3
• Cut-Out Height: 54mm + 28mm / 2 1/8 + 1 1/8
• From Split to Hole Centre: 10mm / 3/8
• Mounting Holes: 10 x 5.2mm / 3/16
• Rivets Required for Installation: 10
• Suits L0906 Backplate
