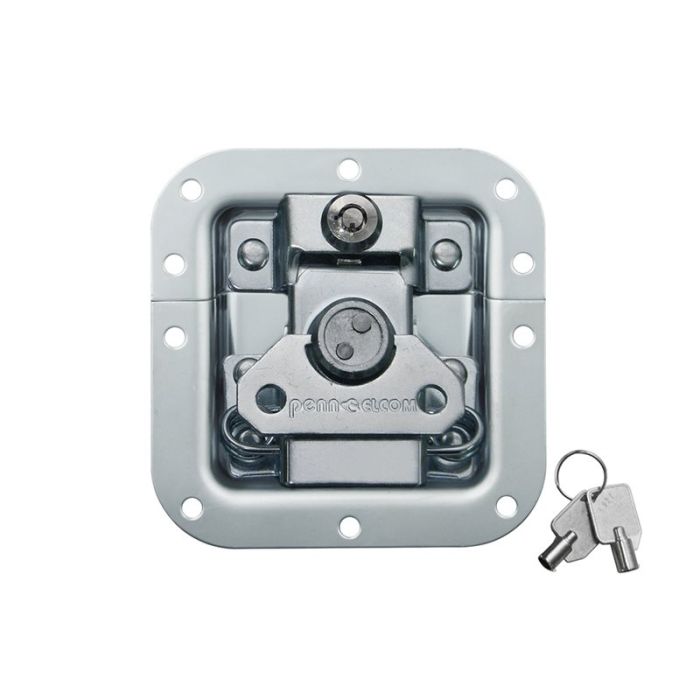

Penn Elcom Medium Mol Recessed Butterfly Latch Key Lock L905/927

Medium MOL Recessed Butterfly Latch in Deep Plain Dish with Key Lock

Securely close your case with a Penn Elcom MOL automatic positioning latch mounted in a medium recessed dish. For use on small to medium-sized cases. T L905/927

Medium MOL Recessed Butterfly Latch in Deep Plain Dish with Key Lock

Securely close your case with a Penn Elcom MOL automatic positioning latch mounted in a medium recessed dish. For use on small to medium-sized cases. The PennBrite zinc plating offers an excellent protection against corrosion with a distinctive bright Penn Elcom finish. The integrated key lock is a simple and convenient solution to add an extra level of security. Each latch comes with two keys. Replacement keys can be purchased separately as needed (see L0927).

Around the globe, the MOL name is synonymous with high quality and dependability. Invented in 1995, the MOL range of flight case latches revolutionised the industry and redefined standards in flight case locking. With its patented leaf-spring automatic opening system and its latch retainer that keeps the latch below the level of the dish while in the opened position, the MOL range has yet to be surpassed in terms of advancement, durability, or prominence.

Product Features:?

- With Patented MOL Automatic Positioning Latch System
- Dish Width: 102mm / 4
- Dish Height: 105mm / 4 1/8
- Dish Depth: 13mm / 1/2
- Offset: No
- Lockable: With Key Lock
- See L0927 Key for replacement Key
- Finish: PennBrite
- Material: 1.2mm / 18 gauge Steel
- Weight: 0.25kg / 0.55lb
- Maximum Working Load Capacity: 90kg / 200lb

Installation Information:

- Panel Cut-Out Size:
- Cut-Out Width: 78mm / 3
- Cut-Out Height: 54mm + 28mm / 2 1/8 + 1 1/8
- From Split to Hole Centre: 10mm / 3/8
- Mounting Holes: 10 x 5.2mm / 3/16
- Rivets Required for Installation: 10
- Suits L0906 Backplate
