Penn Elcom Large Mol Recessed Butterfly Latch L944/530mol

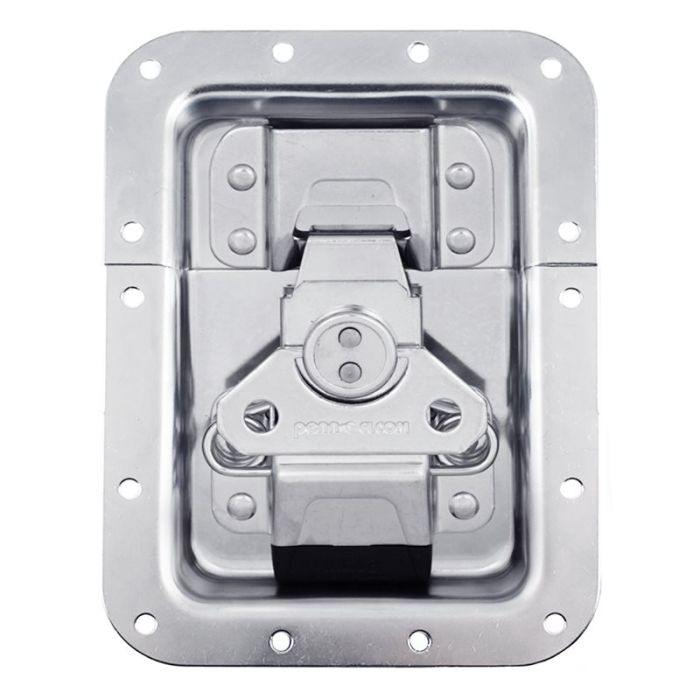

Large MOL 3 Recessed Butterfly Latch in Deep Plain Dish.

10mm / 3/8 From Split to Hole Centre

Securely close your case with a Penn Elcom MOL automatic positioning latch mounted in a large recessed dish. For u L944/530MOL3

Large MOL3 Recessed Butterfly Latch in Deep Plain Dish.

10mm / 3/8 From Split to Hole Centre

Securely close your case with a Penn Elcom MOL automatic positioning latch mounted in a large recessed dish. For use on large-sized cases, the PennBrite zinc plating offers excellent protection against corrosion with a distinctive bright Penn Elcom finish.

The fixing holes are 10mm / 3/8 away from the central split of the dish making it perfect for hybrid edge extrusions.

Around the globe, the MOL name is synonymous with high quality and dependability. Invented in 1995, the MOL range of flight case latches revolutionised the industry and redefined standards in flight case locking. This new generation of MOL latches is designed with a new cantilever automatic open / closes function.

This new system makes locking and unlocking cases a whole lot easier, even with one hand or in the dark. The low-level T-Cam latch mechanism allows the latch to be completely flush in a 16mm deep dish.

Product Features?:
- With MOL3 Automatic Positioning Latch System
- Dish Width: 127mm / 5
- Dish Height: 174mm / 6 7/8
- Dish Depth: 16mm / 5/8
- Offset: No
- Lockable: No
- Finish: PennBrite
- Material: 1.2mm / 18 gauge Steel
- Weight: 0.46kg / 1.02lb
- Maximum Working Load Capacity: 140kg / 308lb

Installation Information?:
- Panel Cut-Out Size:
- Cut-Out Width: 96mm / 3 3/4
- Cut-Out Height: 96mm + 49mm / 3 3/4 + 1 15/16
- From Split to Hole Centre: 10mm / 3/8
- Mounting Holes: 14 x 5.2mm / 3/16
- Rivets Required for Installation: 14
- Suits L0526 Backplate
