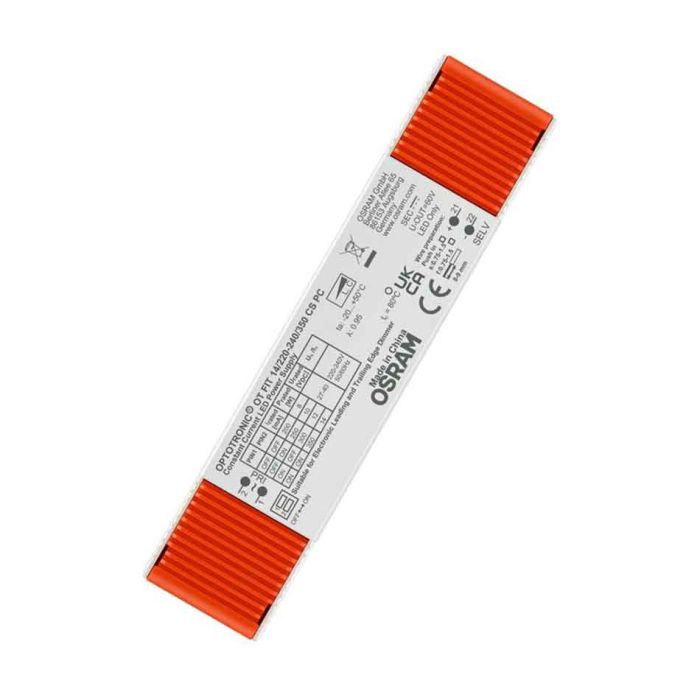

Osram OT FIT 14/220-240/350 CS PC, Led Driver, Phasecut dimmable, 4062172286503

Osram Led Driver OT FIT 14/220-240/350 CS PC Phasecut dimmable 4062172286503 LEDOTFIT14350CSPC PSU power supply

Constant Current SELV drivers with leading- or trailing-edge dimming.The compatibility with the most common leading-edge and trailing-edge phase dimmers and the possibility of dimming from 5-100% marks one of the key characteristics. Others include a cable clamp for independent installations and DIP switches for 4 output currents per wattage.

Orange cable clamps are included with the driver. This allows independent mounting of the driver.

Perfect match for the Osram PrevaLED Coins 1400 (50mm): LEDCOB140092715D, LEDCOB140092724D, LEDCOB140092740D, LEDCOB140093015D, LEDCOB140093024D & LEDCOB140093040D

Product family features:

• Cable clamp housing for independent mounting
• Dimmable on the leading edge and trailing edge
• Housing for independent installation

Product family benefits:

• Compatible with the most common leading-edge and trailing-edge phase dimmers
• Flexible current setting (DIPswitch – 2 to 4 currents)
• Flicker-free dimming
• Higher quality of light thanks to < 5% output ripple current
• Housing from 80% recycled plastic
• EAN: 4062172286503

Areas of application:

• Decorative illumination
• Downlights, flat luminaires
• Hospitality
• Living areas
• Museums, residential buildings
• Offices
• Shop lighting
• Suitable for indoor SELV installations
• Suitable for luminaires of protection class I and II

Electrical Data:

• Nominal voltage: 220 - 240 V
• Mains frequency: 50 - 60 Hz
• Input voltage AC: 198 - 264 V
• Total harmonic distortion: < 20 %
• Power factor λ (full/minimum load at 230 V): 0.9C/ 0.95
• ECG efficiency (full load at 230 V): 81 %
• Device power losses (max): 3.5 W
• Inrush current: < 10 A
• Nominal output power: 14 W
• Partial load: 5.4 - 14 W
• Nominal output voltage: 27 - 40 V
• Nominal output current: 200 / 250 / 300 / 350 mA (+/- 7.5%)
• Max. ECG no. on circuit breaker 10 A (C): 132
• Max. ECG no. on circuit breaker 10 A (B): 80
• Max. ECG no. on circuit breaker 16 A (C): 212
• Max. ECG no. on circuit breaker 16 A (B): 128
• Surge capability (L/N-Ground): 2 kV
• Surge capability (L-N): 1 kV
• Nominal output voltage: 27-40 V
• U-OUT (working voltage): 60 V
• Output current tolerance: ±7.5 %
• Output ripple current (100 Hz): < 5 %
• Output PSTLM: ≤1
• Output SVM: ≤0.4
• Default output current: 350 mA
• Galvanic isolation primary/secondary: SELV
• Current set: DipSwitch

Dimensions & weight:

• Product weight: 60 g
• Cable cross-section, input side: 0.75 - 1.5 sqmm
• Cable cross-section, output side: 0.75 - 1.5 sqmm
• Wire preparation length, input side: 8-9 mm
• Wire preparation length, output side: 8-9 mm
• Length: 130 mm
• Width: 30 mm
• Height: 22.2 mm
• Colors & materials:
• Casing material: 80% recycled plastic

Temperatures & operating conditions:

• Ambient temperature range: -20 +50 C
• Temperature range at storage: -40 +85 C
• Maximum temperature at tc test point: max. +70 C
• Max.housing temperature in case of fault: 110 C
• Permitted rel. humidity during operation: 5-85 %

Lifespan:

• ECG lifetime (at Tcase = 70 C at Tc point/10-% failure rate): 35000 h
• ECG lifetime (at Tcase = 60 C at Tc point/10-% failure rate): 50000 h

Capabilities:

• Dimmable: Yes
• Dimming interface: Phase Cut (Leading edge/Trailing edge)
• Dimming range: 5 - 100 %
• Suitable for fixtures with prot. class: I / II
• Dimming method: Amplitude Modulation
• Overheating protection: Automatic reversible
• Overload protection: Automatic reversible
• Short-circuit protection: Automatic reversible
• No-load proof: Yes
• Intended for no-load operation: No
• Max. cable length to lamp/LED module: 2 m
• Suitable for fixtures with prot. class: I / II
• Type of connection, input side: Push terminal
• Type of connection, output side: Push terminal
• Suitable for through-wiring:No
• Number of channels: 1

Programming:

• Programming device: DIPswitch

Certificates & standards:

• Approval marks – approval: CCC / CE / UKCA / ENEC

Standards:

• Acc. to IEC 61347-1/Acc. to IEC 61347-2-3/Acc. to IEC 62384/Acc. to IEC
• 61547/Acc. to IEC 61000-3-3/Acc. to EN 61000-3-2
• Protection class: I,II
• Type of protection: IP20

Logistical data:

• Commodity code: 85044083900
• Weight 60g
