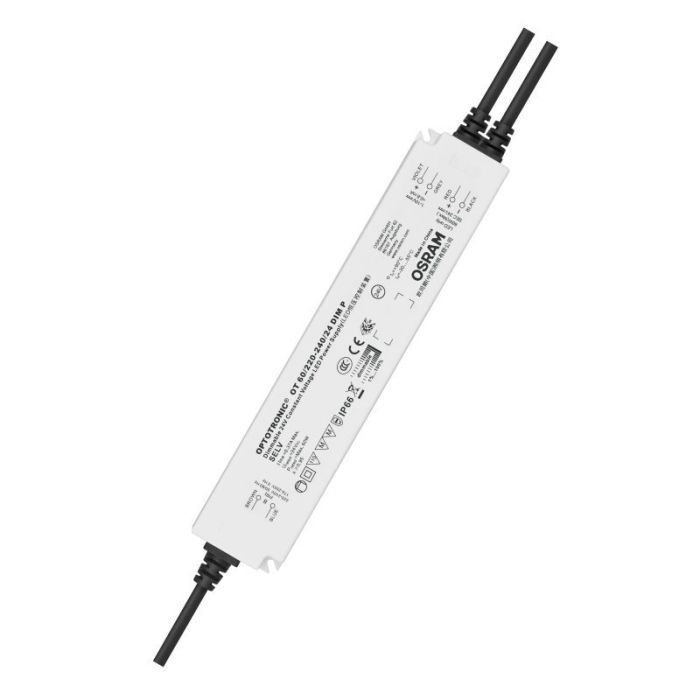

Osram Ot 60/220-240/24 Dim P 24v 60w Led Driver 4052899545847

Led Driver Ot 60/220-240/24 Dim P 24v 60w 4052899545847 LEDOT6024DIMP

CV Power supplies 24 V with 1-10 V

Product benefits

• Large range of products from 20 W to 250 W
• Installation in very cold and hot environments
• Very stable output power
• High electronical reversible short-circuit, overload, overtemperature protection
• Smart Power Supply boosting power to turn on cold LEDs
• Independent installation possible
• Dimming range 1-100 %

Product features

• DC mode functionality
• Type of protection IP66 and IP67
• Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE)
• Wide operating temperature range -30 +55 C
• Lifetime up to 50000 h (temperature at max. tc)
• Dimmable via fully isolated 1-10 V interface

Areas of application

• Facades, public squares, cruise ships
• Signage
• Suitable for indoor and outdoor installations

Spec

• EAN: 4052899545847
• Nominal voltage: 220-240 V
• Mains frequency: 0-60 Hz
• Input voltage AC: 198-264 V
• Total harmonic distortion: < 15 %
• Power factor: 0.95
• ECG efficiency: 87 %
• Device power loss: 7.8 W
• Power loss in stand-by mode:
• Max. ECG no. on circuit breaker 16 A (B): 34
• Max. ECG no. on circuit breaker 25 A (B): 53
• Surge capability (L-N): 4 kV
• Nominal output voltage: 24.2 V
• U-OUT (working voltage): 30 V
• Nominal output power: 60 W
• Galvanic isolation: SELV
• Galvanic isolation primary/secondary: 3 kV
• Length: 208 mm
• Width: 43 mm
• Height: 26 mm
• Mounting hole spacing, length: 199 mm
• Product weight: 420 g
• Cable cross-section, input side: 1.0 sqmm
• Cable cross-section, output side: 1.0 sqmm
• Wire preparation length, input side: 90 mm
• Wire preparation length, output side: 90 mm
• Cable/wire length, control input: 320 mm
• Cable/wire length, input side: 300 mm
• Cable/wire length, output side: 300 mm
• Casing material: Plastic
• Ambient temperature range: -30 +55 C
• Maximum temperature at tc test point: 85 C
• Max.housing temperature in case of fault: 110 C
• Permitted rel. humidity during operation: 5-85 %
• Ambient temperature range: -30 +55 C
• Maximum temperature at tc test point: 85 C
• Max.housing temperature in case of fault: 110 C
• Permitted rel. humidity during operation: 5-85 %
• ECG lifetime: 50000 h
• Encapsulated: Yes
• Dimmable: Yes/>
• Dimming interface: 1-10 V
• Dimming range: 1-100 %
• Dimming method: Pulse Width Modulation
• Overheating protection: Yes
• Overload protection: Yes
• Short-circuit protection: Yes
• No-load proof: Yes
• Suitable for fixtures with prot. class: II
• Type of connection, output side: Cables
• Number of channels: 1
• Approval marks: ENEC/RCM/CCC/EAC
• Standards Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 61000-3-3/Acc. to EN 60598-1/Acc. to EN 62384
• Protection class: II
• Type of protection: IP66
• Temperature range at storage: -40 +85 C
