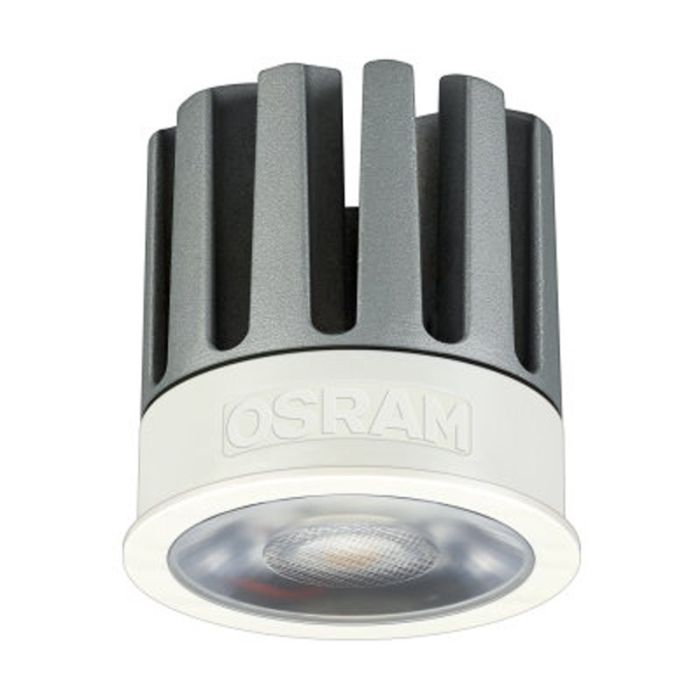

Led Pl-cn50-cob-1400-927-40d-g2 Fs1 Prevaled Coin Cob 50, 4052899621299

Osram Led Pl-cn50-cob-1400-927-40d-G2 Fs1 Prevaled Coin Cob 50 4052899621299 LEDCOB140092740D

EAN: 4052899621299

Priced per unit; available in any quantity. For best-LED driver to match your requirements please see the listing below.
Where the output current of the driver is not a fixed value but a range, specific steps have to be taken to set up a fixed 350mA output current.

• LEDOTE13350PC (switched or mains dimmable)
• LEDOTE18350PC (switched or mains dimmable)
• LEDOTDALI20500NFC (DALI2 NFC)
• LEDOTDALI2151A0LT2 (DALI2)

Accessories available (Suitable only for PrevaLED 50mm coins):

• LEDCOB50G2BC - Black Cover
• LEDCN50RR - White Round Ring

Product family features

• Color consistency < 2 SDCM
• TM30 compliant
• High flux output up to 1500 lm
• Beam angle: 15Deg, 24Deg, 40Deg
• Type of protection: IP20

Product family benefits

• Compatible with conventional MR16 lamps
• Precise optical control and free from multi-shadow issue
• Replaceable front cover to maximize optics flexibility and future extension
• Dual mode options in High-Output (HO) and High-Efficacy (HE)

Areas of application

• Retail, shop, restaurant, hospitality
• High-end residential
• Suitable for indoor applications
• Connecting multiple modules in parallel on one LED driver is not permitted
• Connecting multiple modules in series on one LED driver is not recommended
• Do not use in sealed fixtures
• Avoid covering the lens with dust or any object

Electrical data

• Nominal current: 0.35 A
• Nominal voltage: 36.5 V
• Current: DC
• Energy consumption in on-mode [GMS]: 12.5 kWh/1000h
• On-mode power: 12.5 W

Photometrical data

• Luminous efficacy: 94.0 lm/W
• Light colour (designation): 2700 K
• Colour rendering index Ra: 90
• Useful luminous flux (Fuse) [GMS]: 1000 lm
• Correlated colour temperature CCT [GMS]: 2700 K
• Colour consistency (McAdam ellipses) [GMS]: 2
• Peak luminous intensity [GMS]: 2450
• Beam Angle: 40 Degree

Light technical data

• Starting time: < 0.5 s
• Warm-up time (60 %): < 2.00 s

Dimensions & weight

• Diameter: 50.0 mm
• Product weight: 90.00 g
• Height: 55 mm
• Width: 50 mm
• Length: 50 mm

Colors & materials

• Heatsink color: Grey

Temperatures & operating conditions

• Performance temp. acc. to IEC 62717: 70 DegC
• Maximum temperature at tc test point: 90 DegC
• Ambient temperature range: -25 +40 DegC
• Temperature range at storage: -40 80 DegC

Lifespan

• Number of switching cycles: 15000
• Lumen maintenance factor LMF [GMS]: 96
• L70B50 lifetime [GMS]: 50000 h

Additional product data

Product remark: Modules perfectly matched to OSRAM OPTOTRONIC LED drivers (see relevant table)/For current photometric data and important safety, installation and application information (see www.osram.com/led-systems)./All the technical parameters apply to the entire module. Given the complex manufacturing process for light-emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values/Tolerance for optical and electrical data: +/-10%, Lighting technology used [GMS]: LED, Predecessor EAN: 4052899583641

Certificates & standards

• Standards: Acc. to IEC 62471/Acc. to EN 60598-1/Acc. to EN 60529/Acc. to EN 55015/Acc. to EN 61547/Acc. To EN62031 IEC 605981/CE
• Energy efficiency class: F
• Type of protection: IP20

Logistical data

• Commodity code: 853951000000

Environmental information

• Information according to Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
• Date of Declaration: 20-07-2022
• Primary Article Identifier: 4052899621299
• Candidate List Substance 1: No declarable substances contained
• Declaration No. in SCIP database: No declarable substances contained
