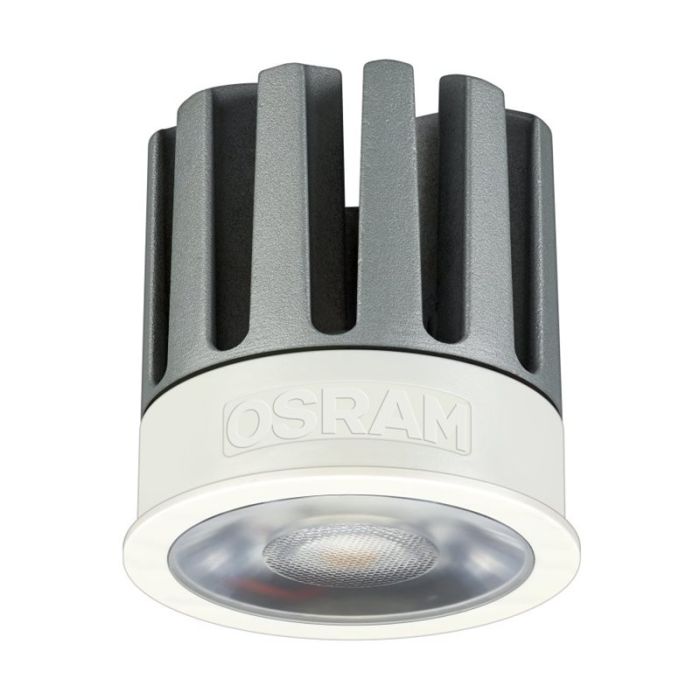

Led Pl-cn50-cob-1400-927-24d-g2 Fs1 Prevaled Coin Cob 50 4052899621190

Osram Led Pl-cn50-cob-1400-927-24d-G2 Fs1 Prevaled Coin Cob 50 4052899621190 LEDCOB140092724D

EAN: 4052899621190

Priced per unit; available in any quantity. For best LED driver to match your requirements please see listing below.
Where the output current of the driveer is not a fixed value but a range, specific steps have to be taken to setup a fixed 350mA output current. Please get in touch for more information.

LEDOTE13350PC (switched or mains dimmable)
LEDOTE18350PC (switched or mains dimmable)
LEDOTDALI20500NFC (DALI2 NFC)
LEDOTDALI2151A0LT2 (DALI2)

Accessories available (Suitable only for PrevaLED 50mm coins):

LEDCOB50G2BC - Black Cover
LEDCN50RR - White Round Ring

Product family benefits
Compatible with conventional MR16 lamps
Precise optical control and free from multi-shadow issue
Replaceable front cover to maximize optics flexibility and future extension
Dual mode options in High-Output (HO) and High-Efficacy (HE)

Areas of application
Retail, shop, restaurant, hospitality
High-end residential
Suitable for indoor applications
Connecting multiple modules in parallel on one LED driver is not permitted
Connecting multiple modules in series on one LED driver is not recommended
Do not use in sealed fixtures
Avoid covering the lens with dust or any object

Technical Data
Electrical data
Nominal current: 0.35 A
Nominal voltage: 36.5 V
Type of current: DC
Energy consumption in on-mode [GMS]: 12.6 kWh/1000h
On-mode power [GMS]: 12.6 W

Photometrical data
Luminous efficacy: 92 lm/W
Light color (designation): 2700 K
Color rendering index Ra: 90
Useful luminous flux (Fuse) [GMS]: 1000 lm
Correlated color temperature CCT [GMS]: 2700 K
Colour consistency (McAdam ellipses) [GMS]: 2
Peak luminous intensity [GMS]: 4350

Light technical data
Starting time: < 0.5 s
Warm-up time (60 %): < 2.00 s

Dimensions & weight
Diameter: 50.0 mm
Product weight: 90.00 g
Height: 55 mm
Width: 50 mm
Length: 50 mm

Colors & materials
Heatsink color: Grey

Temperatures & operating conditions
Performance temp. acc. to IEC 62717: 70 DegC
Maximum temperature at tc test point: 90 DegC
Ambient temperature range: -25 +40 DegC
Temperature range at storage: -40 80 DegC

Lifespan
Number of switching cycles: 15000
Lumen maintenance factor LMF [GMS]: 96
L70B50 lifetime [GMS]: 50000 h

Additional product data
Product remark: Modules perfectly matched to OSRAM OPTOTRONIC LED drivers (see relevant table)/For current photometric data and important safety, installation and application information (see www.osram.com/led-systems)./All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values/Tolerance for optical and electrical data: +/-10%
Lighting technology used [GMS]: LED
Predecessor EAN4052899583627:

Certificates & standards
Standards: Acc. to IEC 62471/Acc. to EN 60598-1/Acc. to EN 60529/Acc. to EN 55015/Acc. to EN 61547/Acc. To EN62031 IEC 605981/CE
Energy efficiency class: F
Type of protection: IP20

Logistical data
Commodity code: 853951000000

Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 20-07-2022
Primary Article Identifier: 4052899621190
Candidate List Substance 1: No declarable substances contained
Declaration No. in SCIP database: No declarable substances contained
