Led Oti Dali 75/220-240/700 D Nfc Tw L 75w 4052899990326

Osram Led Oti Dali 75/220-240/700 D Nfc Tw L 75w 4052899990326 LEDOTIDALI75TWL

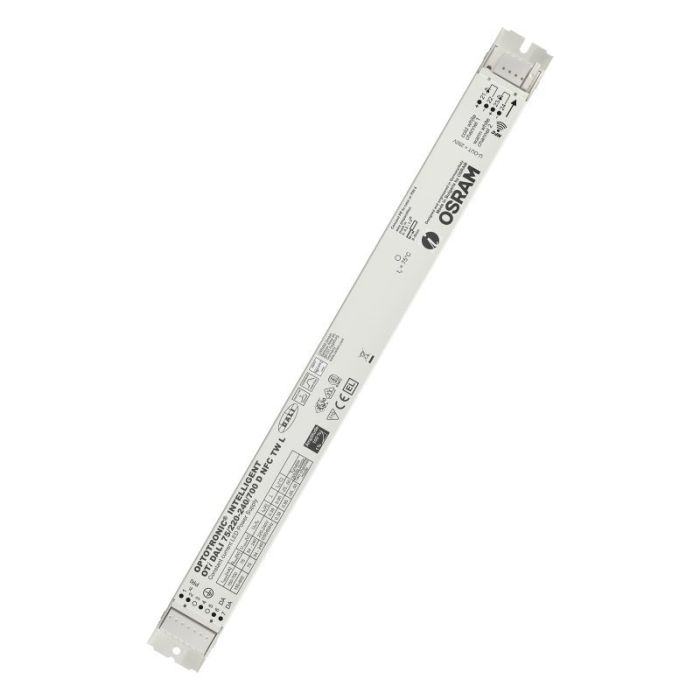

OPTOTRONIC Intelligent Tunable White - Dimmable DALI OTi DALI 75/220-240/700 D NFC TWL Optimal LED solutions for Tunable White and HCL applications in offices and industrial facilities - the new OTi DALI D NFC TW L in 35 and 75 W seamlessly combine maximum functionality, excellent lighting quality and versatile usability in proven OSRAM quality. The new OPTOTRONIC INTELLIGENT OTi DALI D NFC TW L in 35 and 75 W are simply ideal for Tunable White and HCL lighting in office and industrial applications. These two non-isolated drivers provide simple and cost-efficient solutions for appealing Tunable White and HCL lighting. In addition to the DALI DT8 Tunable White functions, they can be operated as 2-channel drivers in DT6 mode (e.g. for direct/indirect lighting). The drivers seamlessly combine excellent lighting quality, high reliability , highly flexible module use with NFC as well as DALI programming (all TW functions simply programmable via Tuner4TRONIC). For lighting control, select depending on your application: DALI MCU TW - Intuitive manual dimming, switching and color temperature setting 4052899465916 DALI ACU BT - Intuitive manual dimming, switching and color temperature setting, lighting control app connected via Bluetooth 4052899544819 DALI ECO BT - Intuitive manual dimming, switching and color temperature setting, lighting control app connected via Bluetooth, simplified commissioning thanks to pre-defined function modes 4052899988781 DALI Pro - Control of up to 1,024 DALI ECGs via LAN connection, simple and intuitive control via app 4008321710871 Product features: Line frequency 0 Hz / 50 Hz / 60 Hz Versatile DALI window driver up to 75 W due to flexible output characteristic Supply voltage 220-240 V Usable as DT6 (2-channel) or DT8 (Tunable White) driver Available with output current range up to 700 mA Constant Lumen Output (CLO) Integrated customizable thermal management (Driver Guard) Non-isolated drivers DALI-2 certified (Part -101,-102 and -207) Product benefits: Control of standard white or Tunable White light acc. DALI device type 8 (DT8) TouchDIM Tunable White integrated for use without additional LMS (planned for end of 2018) Fully programmable via software (DALI Interface, NFC) Lifetime up to 100,000 h (temperature at Tc = 65 C, max. 10 % failure rate) High-quality dimming of 1-100 % (amplitude and/or PWM selectable by software) High quality of light thanks to 0.95 ECG efficiency: up to 91 % Device power loss: 6 W Power loss in stand-by mode:
