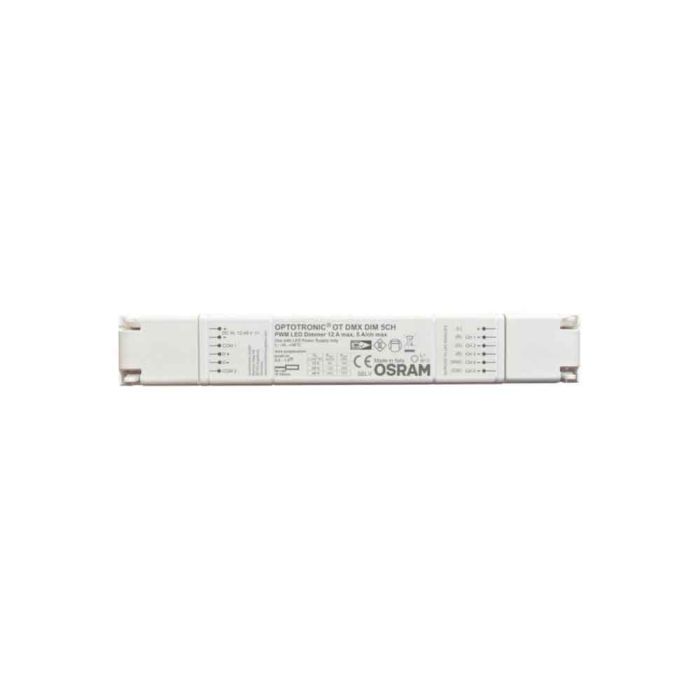

Osram OT DMX RGBW DIM 5CH: 12/24/48V LED Dimmer

Osram Led Ot Dmx Rgbw Dim 5ch dimmer with 12/24/48V output voltage, 6977078993838

OT DMX DIM 5 channels For use with Single Colour/TW/RGB/RGBW/RGBTW LED strips and modules

The Osram OT DMX RGBW DIM 5CH is a versatile 5-channel constant voltage dimmer designed for RGBW and RGBTW LED modules. Operating with 12V, 24V, or 48V inputs, it offers precise dimming from 0.1% to 100%, making it suitable for applications requiring low-level lighting control. The unit supports DMX512 and RDM protocols, allowing for seamless integration and remote configuration. Its high PWM frequency ensures flicker-free performance, ideal for video recording environments. Housed in a compact, independent casing, it's perfect for ceiling installations in retail, hospitality, museums, and residential settings.

If you are creating a unique lighting design, consider a constant voltage dimmer with DMX from the OSRAM range. This intelligent digital dimmer with constant voltage can dim from 0-100 %, and is fit for use in special applications where you need to dim below 1 %. You can mount the unit independently with the cable clamp housing. OSRAMs CV dimmers with DMX are designed for use with SELV installations inside, and protect your lighting from overload, over-temperature and short circuits. Whether your creative vision is for bar lighting, shop lighting, commercial lighting or any other room concept, a dimmer from this family may help you to achieve it.

For max. power consumption for each channel (R/G/B/WW/CW) please consult technical specs.

Product Benefits:

• Control of white, Tunable White, RGB, RGBW and RGBTW LED modules
• Independent housing for ceiling installation
• Minimal installation effort
• Selectable PWM frequency

Product Features:

• Intelligent DMX dimmer, with output voltage of 12, 24 and 48V
• Control of LED modules up to 12 A
• RDM functionality for total control in the application

Areas of Application:

• Suitable for indoor installations
• Shops and hospitality: retail, hotels, restaurants
• Museums, residential buildings, gyms

Technical Specification

• EAN: 6977078993838 (Predecessor 4052899557949)
• Nominal input voltage: 12-24-48 V
• Nominal output voltage: 12-24-48 V
• Mains frequency: 0 Hz
• U-OUT (working voltage): 48 V
• Output PSTLM: ≤1
• Output SVM: ≤0.4
• Nominal output power: 144 W @ 12 V, 288 W @ 24 V, 576 W @ 48 V
• Maximum output power: 144 W @ 12 V, 288 W @ 24 V, 576 W @ 48 V
• Galvanic isolation: Non isolated
• Networked standby power:
