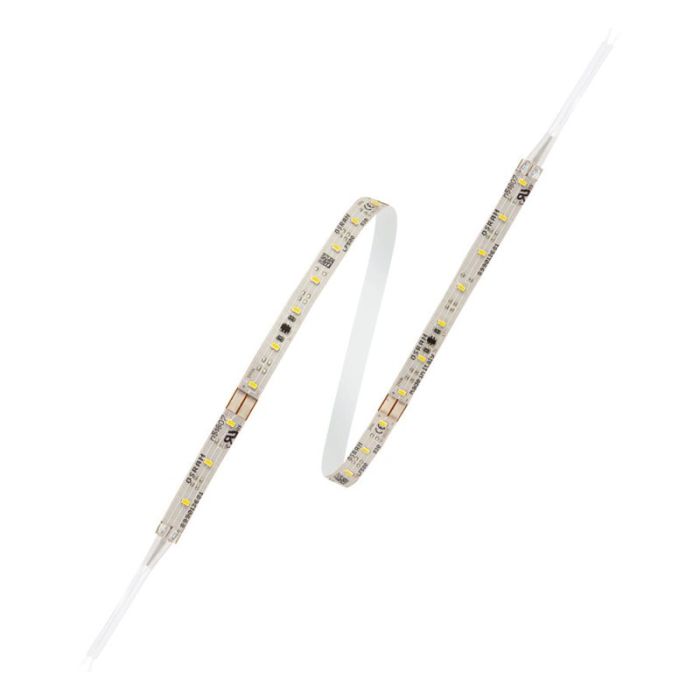

Osram Led Lf500s-g1-922-10 L2 10m/reel 22k 24v 4062172002394

Osram Led Lf500s-g1-922-10 L2 10m/reel 22k 24v 4062172002394 LEDLF500G1922

Product family benefits

• Color consistency up to 2 SDCM on entire light strip thanks to Single-bin technology
• Color rendering options Ra: 80 and 90
• Service lifetime (L80/B10): up to 60,000 h
• LM79 and LM80 compliant
• Embedded constant current regulators
• No solder-joints on circuit board
• Flexible and cuttable LED strips
• Dimmable (with suitable PWM dimming methods)

Areas of application

• For high-end application with dedicated equipment and accessories
• Equipment / Accessories
• Flexessories: a complete set of aluminum channels with diffusers and lenses
• Connectors: quick-and-easy toolless installation with SLIMCONNECTsystem G2
• Drivers and dimmers: wide selection of OPTOTRONIC 24 V DALI, DMX and BLE
• Check for more detailed information the specification sheets in the download section

Electrical data
Nominal voltage: 24.0 V
Type of current: DC
Nominal wattage per meter: 3.9 W
Rated wattage: 39.00 W
Input voltage range: 23 25 V
Accidental reverse input voltage protection up to: 25 V

Photometrical data
Light color LED: White
Color rendering index Ra: >90
Luminous flux per meter: 360 lm
Total useful luminous flux: 3600 lm
Luminous efficacy: 92 lm/W
Standard deviation of color matching: =3 sdcm
Rated color temperature: 2200 K
Color temperature: 2200 K

Light technical data
LED pitch: 14.29 mm
Beam angle: 120 Deg
Rated beam angle (half peak value): 120.00 Deg
Starting time: < 0.5 s
Warm-up time (60 %): < 0.50 s

LED module information
Number of LEDs per meter: 70
Number of LEDs per smallest unit: 7

Dimensions & weight
Length: 10000 mm
Length - smallest unit: 100.0 mm
Width: 8.00 mm
Height: 1.40 mm
Product weight: 86.40 g
Cable cross-section, input side: 0.51 mmSq

Temperatures & operating conditions
Performance temp. acc. to IEC 62717: 35 DegC
Temperature range in operation at Tc point: -30 75 DegC
Ambient temperature range: -30 +50 DegC
Temperature range at storage: -40 +85 DegC

Lifespan
Rated lamp life time: 60000 h
Nominal lamp life time: 60000 h
Lumen main.fact.at end of nom.life time: 0.70
Number of switching cycles > 15000

Additional product data
Predecessor EAN: 4062172002394
ID of contained light source: LS_TRV_274091

Capabilities
Dimmable: Yes
Lowest bending radius: 20 mm

Certificates & standards
Energy consumption: 43 kWh/1000h
Standards: CE/UL/ENEC/EAC
Type of protection: IP20
Energy efficiency class of the contained light source: G

Logistical data
Commodity code: 940542319000

Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 13-02-2022
Primary Article Identifier: 4062172142434
Candidate List Substance 1: Lead
CAS No. of substance 1: 7439-92-1
Safe Use Instruction: The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database: 7c7abcfd-8cd3-45ad-84dd-b833bc2b0b36
