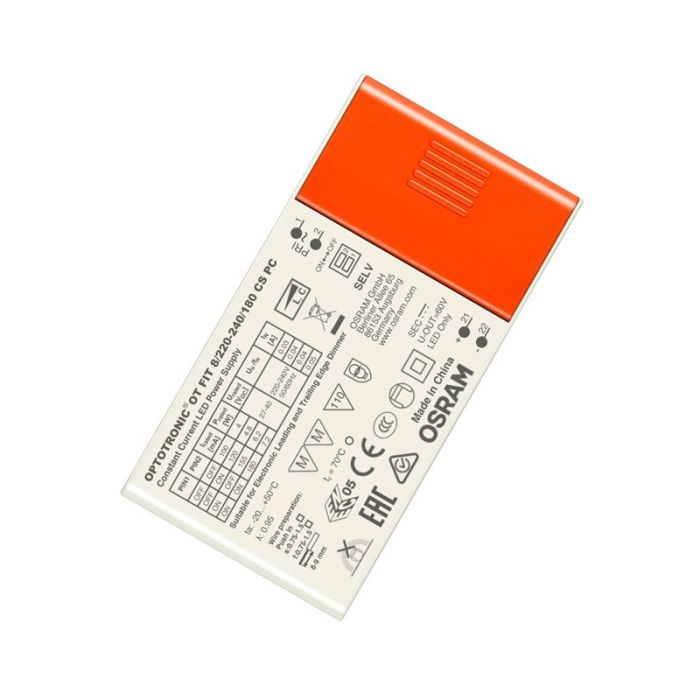

Osram Led Driver Ot Fit 8/220-240/180 Cs Pc Phase Cut 180ma 4062172007535

Osram Led Driver Ot Fit 8/220-240/180 Cs Pc Phase Cut 180mA 4062172007535 LEDOTFIT8180CSPC

EAN: 4062172007535

LED driver for modules that require 100 / 120 / 155 / 180 mA input current. Suitable for switching or phase cut dimming.

Recommended for the Osram PrevaLED Coins CN35 (such as LEDCOB60093036D, LEDCOB60092736D).

Orange cable clamp (for independent installation of the driver) is included.

EAN: 4062172007535

Product family benefits

• Compatible with the most common leading-edge and trailing-edge phase dimmers
• Flexible current setting (DIPswitch - 2 to 4 currents)
• Flicker-free dimming
• Higher quality of light thanks to < 5% output ripple current

Areas of application

• Decorative illumination
• Downlights, flat luminaires
• Hospitality
• Living areas
• Museums, residential buildings
• Offices
• Shop lighting
• Suitable for indoor SELV installations
• Suitable for luminaires of protection class I and II

Electrical data
Nominal input voltage: 220 240 V
Mains frequency: 50/60 Hz
Input voltage AC: 198 264 V
Total harmonic distortion: < 20 %
Power factor ?: > 0.95
Efficiency in full-load: 80 %
Device power loss: 1.8 W
Protective conductor current:
