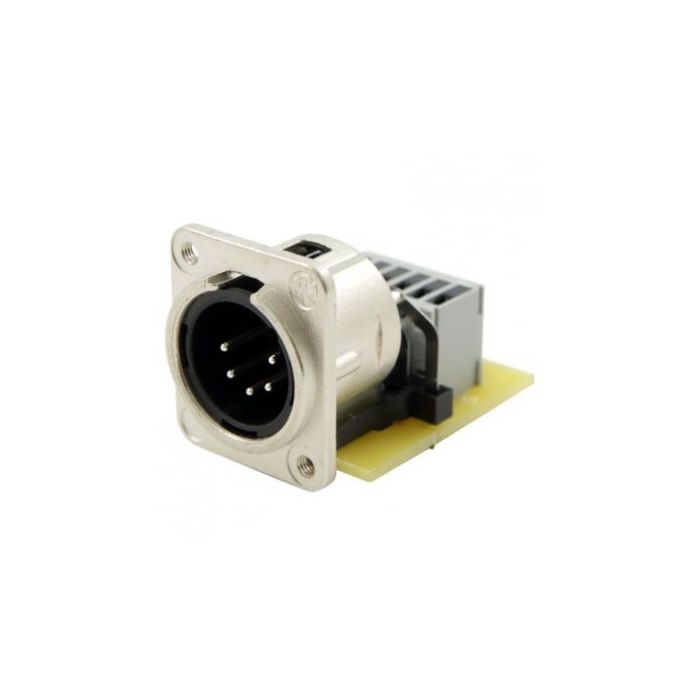

Neutrik Xlr 5 Pin Male Pcb Idc Tapped Hole Nc5mdm3-h-pcb-idc

Neutrik XLR 5 Pin Male PCB IDC Tapped Hole NC5MDM3-H-PCB-IDC CONC5MDM3HIDC

PCB adapters fitted with 4 or 5 pin male or female XLR chassis connectors terminated with IDC or screw terminals.
For use where cables have been installed & wall plates or patch bays need fixing at high speed & in a cold (no soldering) environment.

The IDC terminals do not require a punch down tool and will accept 0.5 - 0.64 mm wire with a maximum OD of 1.8mm
The depth behind the panel for the IDC version is 47.5mm, see NC4FDM3-H, NC4MDM3-H, NC5FDM3-H or NC5MDM3-H for other dimensions.

Priced per connector: available in any quantity
Packing information: box quantity = 100
