Neutrik Xlr 5 Pin Female Chassis A Series Nc5fah-d Connector

£2.68
Out of stock
SKU: FAV-CONC5FAH

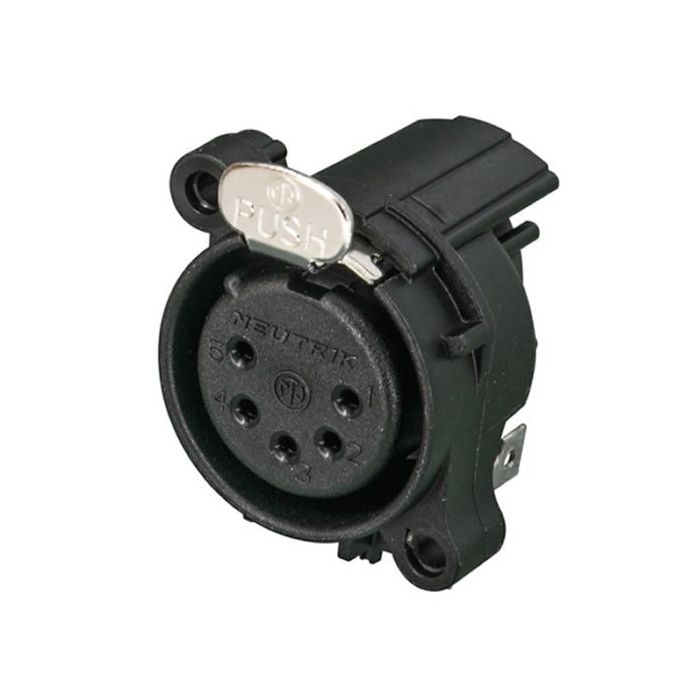

Neutrik XLR 5 Pin Female Chassis A Series NC5FAH-D CONC5FAH By Neutrik


Product Description

Neutrik XLR 5 Pin Female Chassis A Series NC5FAH-D CONC5FAH

XLR 5 Pin Female Chassis A Series

Neutrik 5 pole female XLR receptacle

Plastic housing

Horizontal PCB mount

The compact XLR receptacles for audio

Industrial and lighting (DMX)

Coding rings ACRF are available in 9 different colors.

The State of the Art receptacle. Round plastic body XLR pcb mount panel connector. These have the smallest size and highest packing density (23mm / 7/8" between centres). New designed tulip type female contact on 3 pin versions and fork type on 4 and 5 pole female connectors with hard gold plating and polished contact areas. Variety of grounding options and termination facilities, UL recognized component.

Features & Benefits:
- Smallest XLR receptacles, highest packing density
- Plastic housing, steel latch lock
- Polished contact areas and hard gold plating
- Housing flammability UL94V-0
- Colour coding available
- Male grounding: separate ground contact to mating connector shell and front panel
- Female grounding: without ground / shell contact



Additional Information

SKU
FAV-CONC5FAH
Brand
Neutrik
Manufacturer Code
NC5FAH
