Neutrik Xlr 5 Pin Female Cable Black Body Gold Pins Nc5fxx-b

Neutrik XLR 5 Pin Female Cable Black Body Gold Pins NC5FXX-B CONC5FXXB

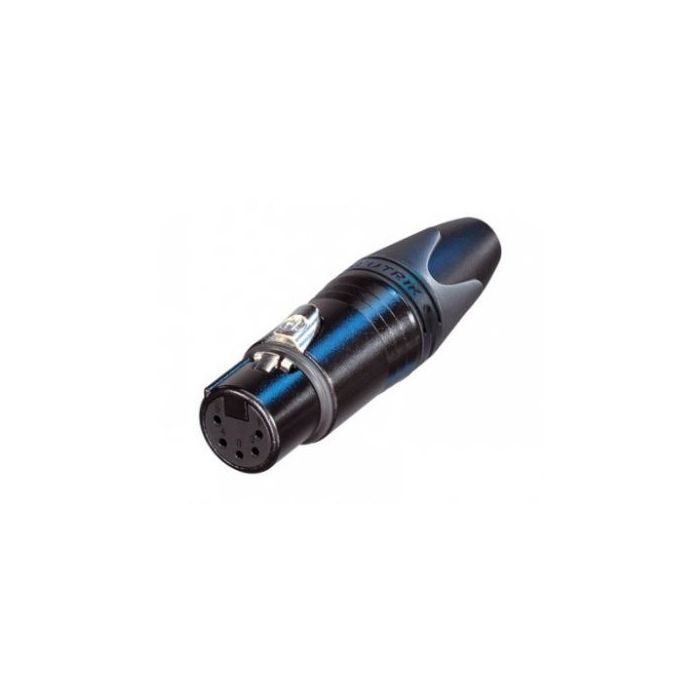

5 pole cable connector, female, black metal housing, gold contacts.
The next generation of the worldwide-accepted standard of XLR cable connector.
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Additional ground spring contacts for better shell ground continuity

Features & Benefits:
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Coloured rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc die-cast shell, long lasting and dependable
- Internal thread on shell is well protected against any damage
- Branded with unique hologram - guarantees genuine and authentic Neutrik product

Technical Specifications:

- Rated current per contact: 7.5 A
- Rated voltage: 50 V
- Dielectric strength: 1.5 kV dc
- Cable O.D: 3.5 - 8.0 mm
- Wire size: max. 2.5 mm
- Wiring: Solder contacts
- Shell plating: Nickel

Priced per connector: available in any quantity
Packing information: Box quantity = 100
Coloured rings and boots available for coding or identification
Manufacturer: Neutrik http://www.neutrik.co.uk/
