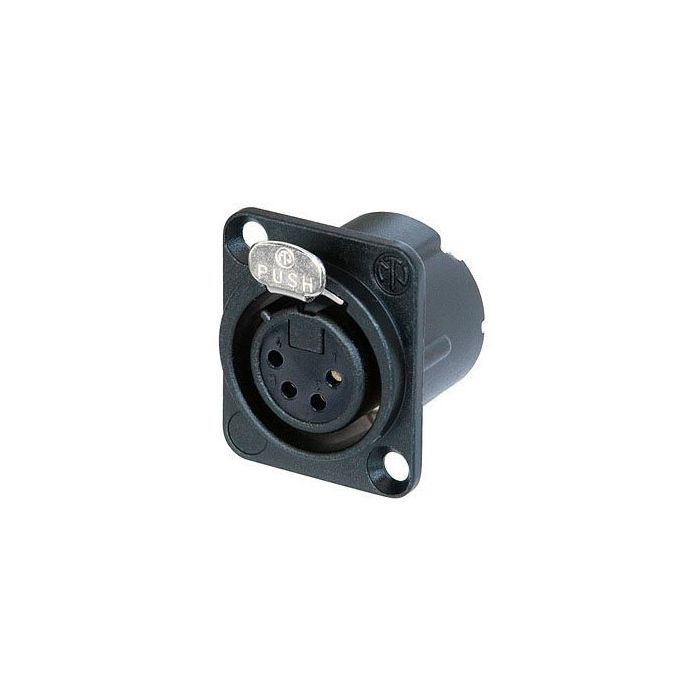

Neutrik Nc4fd-lx-bag, Xlr 4 Pin Connector, Female Chassis Dlx Black Body

4 pole female receptacle

Solder cups

Black metal housing

Silver contacts

The DLX series features a compact all-metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with the Neutriks EMC XLR cable connector.

Features & Benefits:

• All metal housing offers the best overall RF protection and electromagnetic shielding
• New duplex ground contact for excellent contact integrity between chassis and cable connector
• Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
• Female contact incorporates a solder barrier to prevent solder from running into the contact mating area
>
• Larger solder contacts for easier termination
• Optional connection to easily join pin1 to chassis ground
• D-style housing provides installation compatibility with industry standard D mounting dimensions
