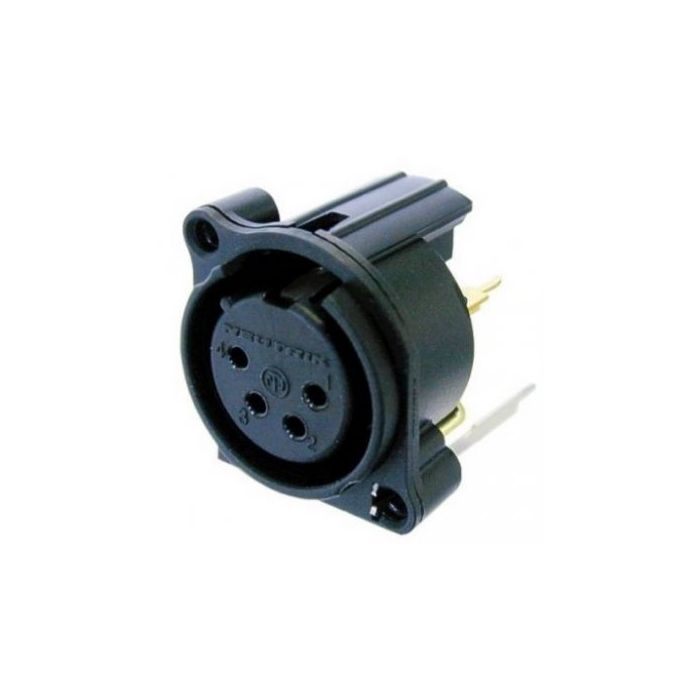

Neutrik Xlr 4 Pin Female Chassis A Series No Latch Nc4fav-0 Connector

Neutrik XLR 4 Pin Female Chassis A Series No Latch NC4FAV-0 CONC4FAV0

4 pole female XLR receptacle

Grounding: without ground / shell contact

Vertical PCB mount

Retention spring instead of latch

Colour coding possible

Technical Specifications:

- Number of contacts: 4
- Contact resistance: 6mOhm
- Dielectric strength: 1500Vdc
- Rated current per contact: 6A
- Rated voltage: 50V
- Wiring: Vertical PCB mount
- Locking device: Retention spring
- Mounting direction: rear
- Chassis shape: A
- Mounting: A-Screw
- Grounding options: Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1

These have the smallest size and highest packing density (23mm between centres). New designed fork type contacts with hard gold plating and polished contact areas. UL recognized component.
