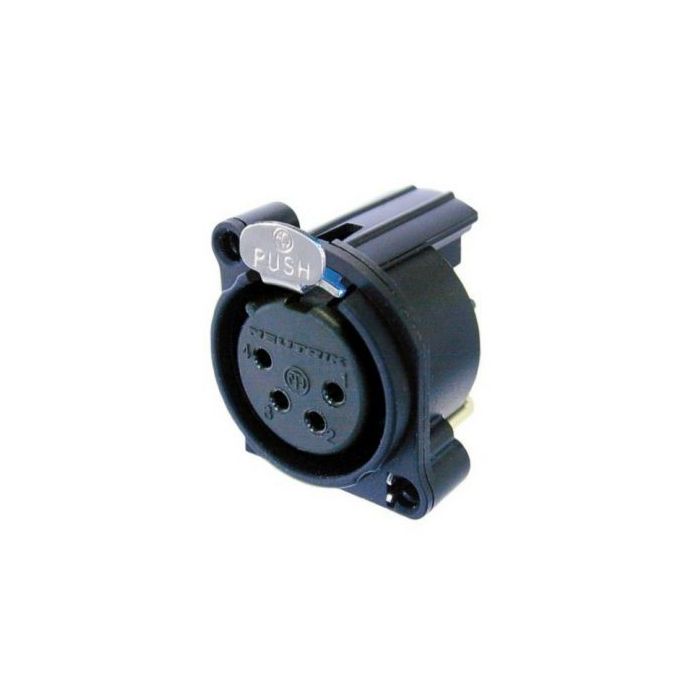

Neutrik Xlr 4 Pin Female Chassis A Series Nc4fah-d Connector

Neutrik XLR 4 Pin Female Chassis A Series NC4FAH-D CONC4FAH

Neutrik 4 pole female XLR receptacle

Plastic housing

Horizontal PCB mount

Technical Specifications:

- Coding rings in 9 different colors.
- Number of contacts: 3 - 5
- Rated current:
- 3 & 4 pole: 6 A
- 5 pole: 3 A
- Rated voltage: 50 V ac
- XLR Chassis Connectors / A Series
- The new `State of the Art` receptacle. Smallest size / highest packing density. New designed contacts with hard gold plating and polished contact areas. TF-contacts. Latch locking or retention spring. Available in 3, 4 and 5 pole. Variety of shell and chassis grounding facilities, direct Pin 1 to chassis ground connection available. Fastening: Self-tapping PLASTITE?* screws with thread 2.9x1.06 and tri-rondular configuration. UL recognized component.
