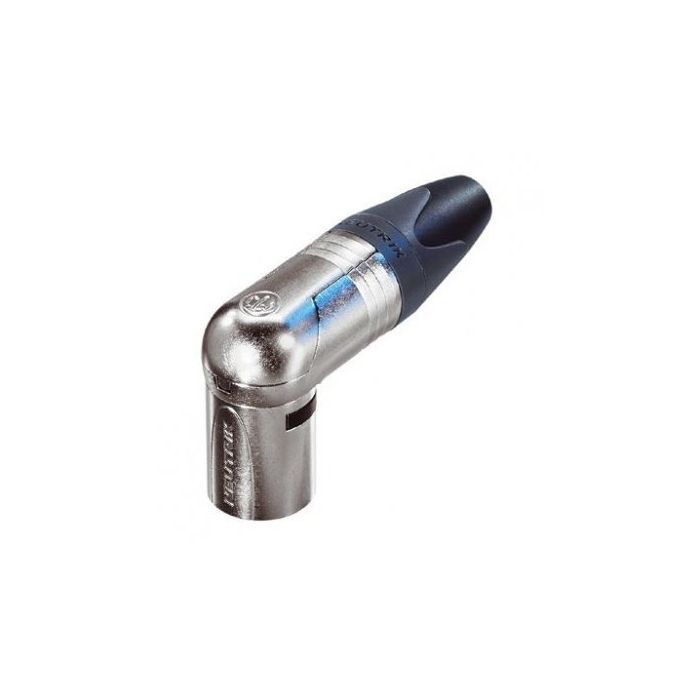

Neutrik Xlr 3 Pin Male Right Angle Cable Nc3mrx Connector

XLR 3 Pin Male Right Angle Cable

3 pole right angle male cable connector, nickel housing, silver contacts
The RX Series is the right angle version of the XX cable connector series.
The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Additional ground spring contacts for better shell ground continuity

Features & Benefits:

- Extra slim right-angle connector
- 5 selectable cable outlet positions
- Coloured rings and boots available for coding or identification
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Sleek and ergonomic design - valuable and handy
- Branded with unique hologram - guarantees genuine and authentic Neutrik product

Technical Specifications:

- Rated current per contact: 16 A
- Rated voltage: 50 V
- Cable O.D: 3.5 - 8.0 mm
- Wire size: max. 2.5 mm
- Wiring: Solder contacts
- Shell plating: Nickel

Priced per connector: available in any quantity
Packing information: Box quantity = 50
Coloured rings and boots available for coding or identification
Manufacturer: Neutrik http://www.neutrik.co.uk/
