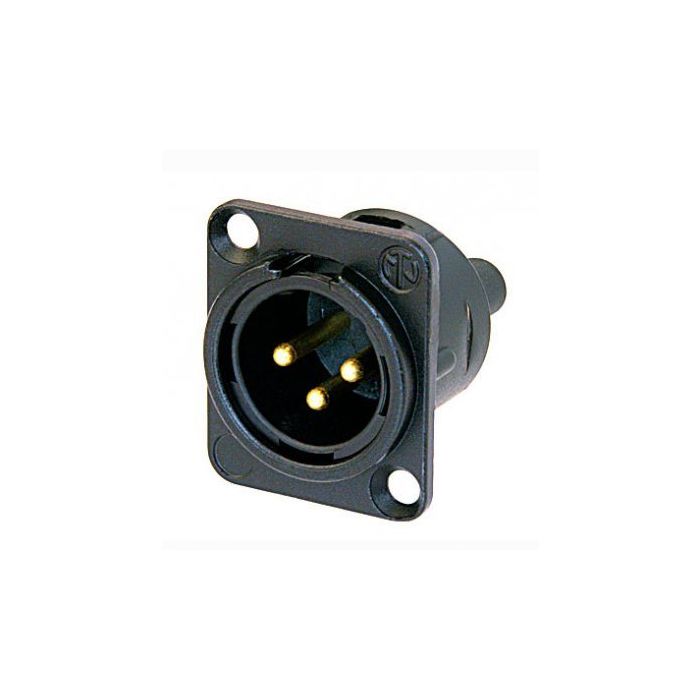

Neutrik Xlr 3 Pin Male Chassis Screw Terminal Nc3md-s-1-b Connector

Neutrik XLR 3 Pin Male Chassis Screw Terminal NC3MD-S-1-B CONC3MDS1B

3 pole male receptacle

D-size metal body

Screw terminals accommodating wire range 0.14mm to 0.5mm (AWG 26 -20)

Black metal housing

Gold contacts

UL recognized component

Technical Specifications:

- Connector Type: XLR
- Gender: male
- Body colour: Black
- Contacts: gold
- Rated current per contact: 3 A
- Dielectric strength: 1.5 kV dc
- Rated voltage: 50 V
- Wire size: 0.14 mm - 0.5 mm
- Wire size: 26 AWG - 20 AWG
- Wiring: Screw terminals
- Locking device: latch lock
- Mounting direction: front
- Chassis shape: D
- Protection class: IP 40

Priced per connector: available in any quantity
Packing information: Box quantity = 100
