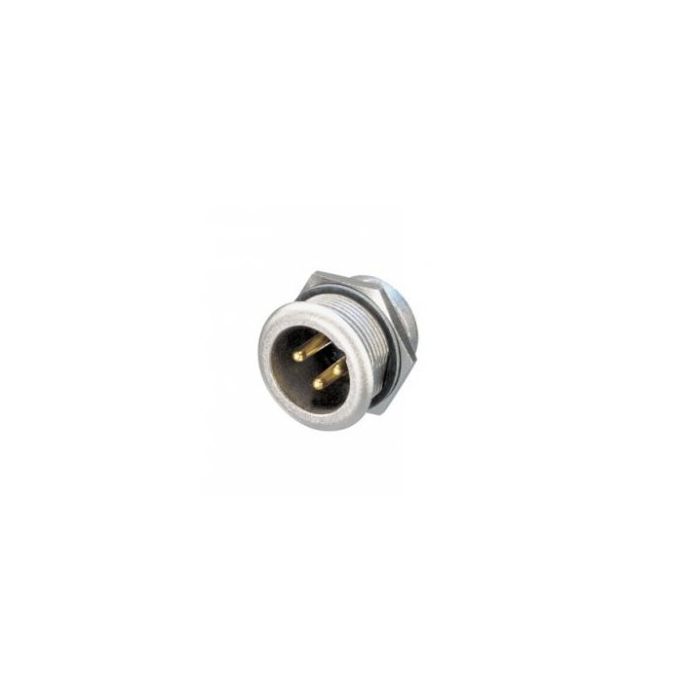

Neutrik Xlr 3 Pin Male Chassis Ip Rated Nc3mpr-hd Connector

Neutrik XLR 3 Pin Male Chassis IP Rated NC3MPR-HD CONC3MPRHD

Heavy duty 3-pole chassis connector for outdoor use. All metal design. IP65 can be achieved in combination with the HD-series cable connectors (NC3/5FX-HD).
This chassis connector can be used perfectly for outdoor and weatherproof applications as well as in a wide range of industrial applications.

Technical Specifications:

- Gold contacts standard.
- Number of contacts: 3
- Contact resistance: < 5 m Ohm
- Insulation resistance - initial: > 2 G
- after damp heat test: > 1 G
- Dielectric strength: 1500 V dc
- Rated current: 16 A (3 pole)
