Neutrik Xlr 3 Pin Male Cable Large Entry Nc3mxx-14-d Connector

Brand: Neutrik
Manufacturer Code: NC3MXX14
Product SKU: FAV-CONC3MXX14
Out of stock

Product Description

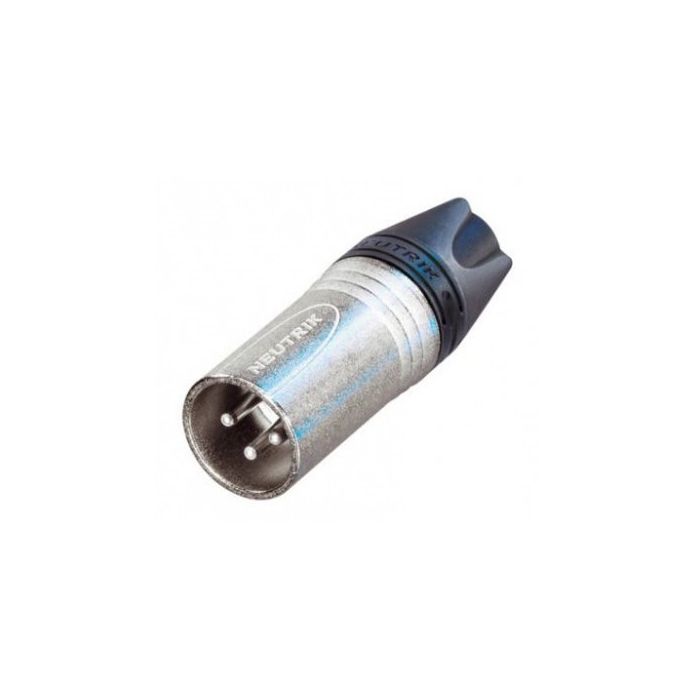

Neutrik XLR 3 Pin Male Cable Large Entry NC3MXX-14-D CONC3MXX14

XLR 3 Pin Male Cable Large Entry

3 pole male cable connector for max. 9.6mm cable O.D. with Nickel housing and silver contacts
Special version of the XLR cable connector XX Series for large cable diameters. Incorporating all features of the XX Series.
The next generation of the worldwide-accepted standard of XLR cable connector.
Female contact incorporates a solder barrier to prevent solder running into the contact mating area.
Additional ground spring contacts for better shell ground continuity.
Internal thread on shell is well protected against any damage.

Technical Specifications:

- Rated current per contact: 16 A
- Rated voltage: 50 V
- Dielectric strength: 1.5 kV dc
- Cable O.D: max. 9.6 mm
- Wire size: max. 2.5 mm
- Wiring: Solder contacts
- Shell plating: Nickel

Priced per connector: available in any quantity
Packing information: Box quantity = 100
Manufacturer: Neutrik http://www.neutrik.co.uk/



Additional Information

SKU
FAV-CONC3MXX14
Brand
Neutrik
Manufacturer Code
NC3MXX14
