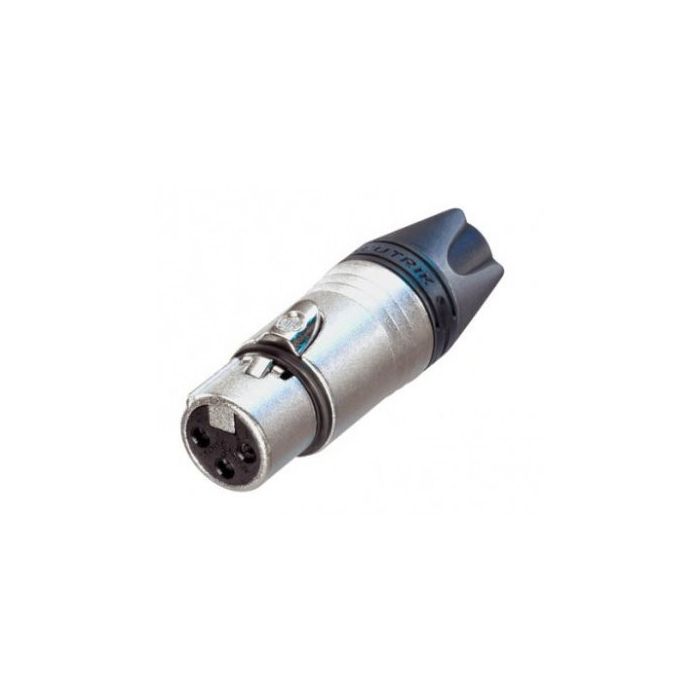

Neutrik Xlr 3 Pin Female Large Entry Cable Nc3fxx-14-d Connector

Neutrik XLR 3 Pin Female Large Entry Cable NC3FXX-14-D CONC3FXX14

3 pole female cable connector for max. 9.6mm cable O.D. with Nickel housing and silver contacts.
Special version of the XLR cable connector XX Series for large cable diameters. Incorporating all features of the XX Series.
The next generation of the worldwide-accepted standard of XLR cable connector.
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Additional ground spring contacts for better shell ground continuity
Internal thread on shell is well protected against any damage.

Technical Specifications:

- Rated current per contact: 16 A
- Rated voltage: 50 V
- Dielectric strength: 1.5 kV dc
- Cable O.D: max. 9.6 mm
- Wire size: max. 2.5 mm
- Wiring: Solder contacts
- Shell plating: Nickel

Priced per connector: available in any quantity
Packing information: Box quantity = 100
Manufacturer: Neutrik http://www.neutrik.co.uk/
