Neutrik Xlr 3 Pin Female Digital Cable Nc3fxx-emc Connector

Neutrik XLR 3 Pin Female Digital Cable NC3FXX-EMC CONC3FXXEMC

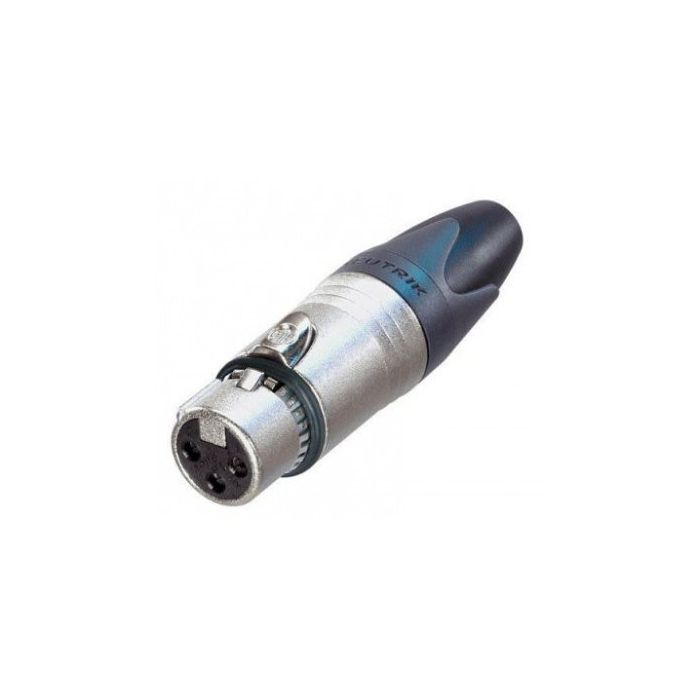

3 pole female EMC-XLR cable connector
The EMC-XLR Series is a specifically designed version of the XX series to give enhanced RF screening for critical applications in live performance and recording where there are particular problems with radio transmission or mobile phones. The design guarantees a continuous RF shield connection from the cable to the chassis connector housing via a circular capacitor around the cable shield. The circular capacitors act as high-pass filter with a cut-off frequency around 10 MHz.

Features & Benefits:
- 3 pole male and female XLR cable connector with integrated capacitive shield to shell connection
- Circular capacitor around the cable shield enables low-inductive shield connection to connector housing
- Female connector with circumferential ground spring providing an accurate connection to the mating shell
- Cable shield - Pin 1 connection includes EMI suppression bead to block high frequencies
- Avoid ground loops as there is no LF-shield connection to ground
- Rugged zinc die-cast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
- Branded with unique hologram - guarantees genuine and authentic Neutrik product

Technical Specifications:

- An EMI suppression ferrite bead with 24 Ohm at 1 MHz between pin 1 and the cable screen provides a low-pass filter for improved RF rejection.
- Rated current per contact: 5 A
- Rated voltage: 50 V
- Cable O.D: 3.5 - 8.0 mm
- Wire size: max. 0.75 mm
- Wiring: Solder contacts
- Shell plating: Nickel
- Shielding effectiveness: > 55 db@ 1 GHz
- Cableshield - shell connection: capacitive
- Cableshield - Pin 1 connection: EMI suppression bead

Priced per connector: available in any quantity
Packing information: Box quantity = 25
Coloured rings and boots available for coding or identification
