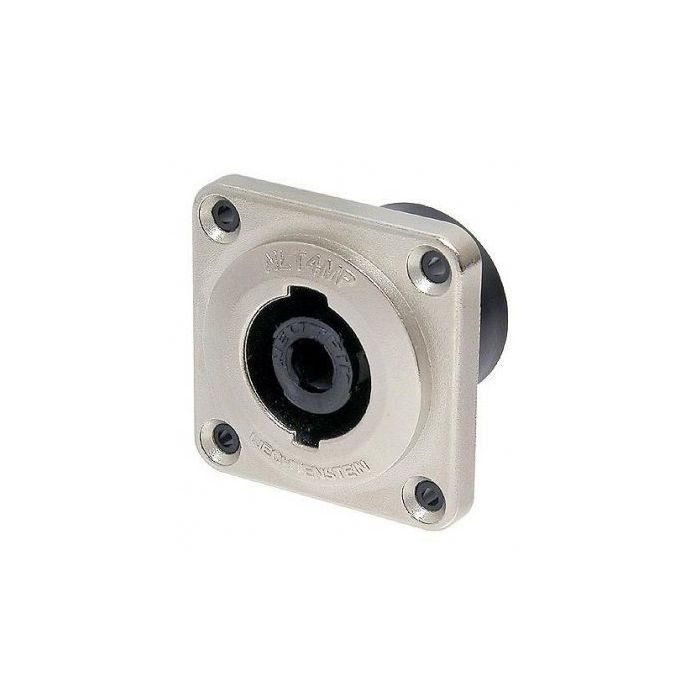

Neutrik Speakon Stx Male 4 Pole Chassis Ip54 Nlt4mp Connector

Neutrik SpeakON STX Male 4 Pole Chassis IP54 NLT4MP CONLT4MP

SpeakON 4 pole male chassis connector, metal housing, solder or +in flat tabs
The new STX Series is the latest generation of 4 pole SpeakON connectors especially designed for amplifier-loudspeaker applications in harsh and demanding environments such as professional touring. The extremely rugged and durable STX Series feature an all metal housing and a built-in gasket providing weatherproof protection to IP54. The 4 pole version is now available as 4 gender system including male cable and female chassis connector.

Features & Benefits:

- Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
- Robust and durable all metal housing
- Reinforced metal quick lock system for ease and precise locking
- Mate with all available Speakon products

Technical Specifications:

- Rated current per contact: 40 A RMS continuous
- Rated current per contact: 50 A audio signal, duty cycle 50 %
- Dielectric strength: 4kV peak
- Rated voltage: 250 V (Insulation)
- Wire size: 6 mm
- Wire size: 10 AWG
- Wiring: solder contacts
- Mounting direction: front and rear
- Chassis shape: square G-size flange
- Protection class: IP 54 (mated condition)

Priced per connector: available in any quantity
Packing information: Box quantity = 25
