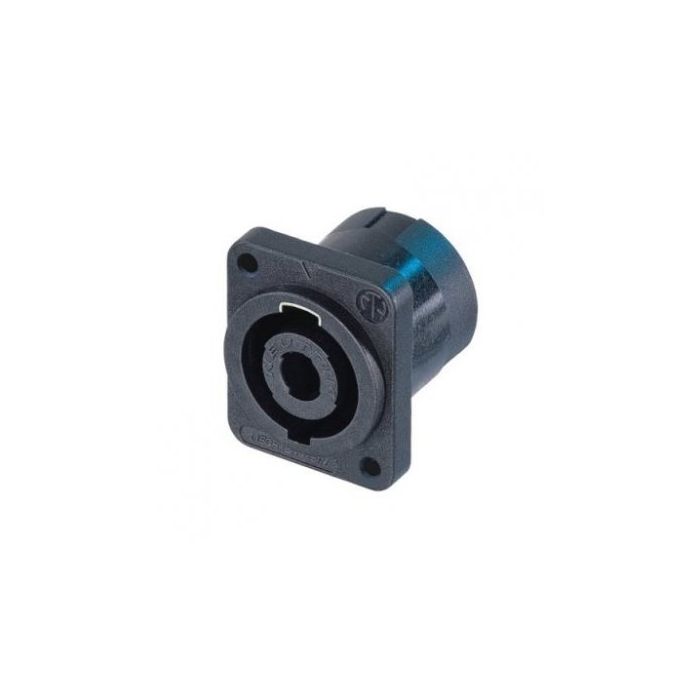

Neutrik Speakon 4 Pole Chassis Switched V/pcb Nl4md-v-s Connector

Neutrik SpeakON 4 Pole Chassis Switched V/PCB NL4MD-V-S CONL4MDVS

SpeakON 4 pole chassis connector

Black D-size flange

Switchable version of NL4MD-V with 8 PCB contacts (4 switching contacts).
Switch is closed unless mating of Speakon cable connector.
This chassis connector is not airtight.
Body colour: Black

Features & Benefits:

- NO (Normally Open) contact on all 4 pins
- Rated current per contact: 30 Amp rms continuous
- Rated current per contact: 40 Amp audio signal, duty cycle 50 %
- Dielectric strength: 4kV peak
- Rated voltage: 250V (Insulation)
- Wiring: Vertical PCB mount
- Mounting direction: Rear
- Layout: Standard hole position, self tapping screw holes (A-Screw)

Priced per connector: available in any quantity
Packing information: Box quantity = 100
