Neutrik SpeakON 4 Pole Chassis D Flange Screw Term NL4MP-ST CONL4MPST

SpeakON 4 Pole Chassis D Flange Screw Term

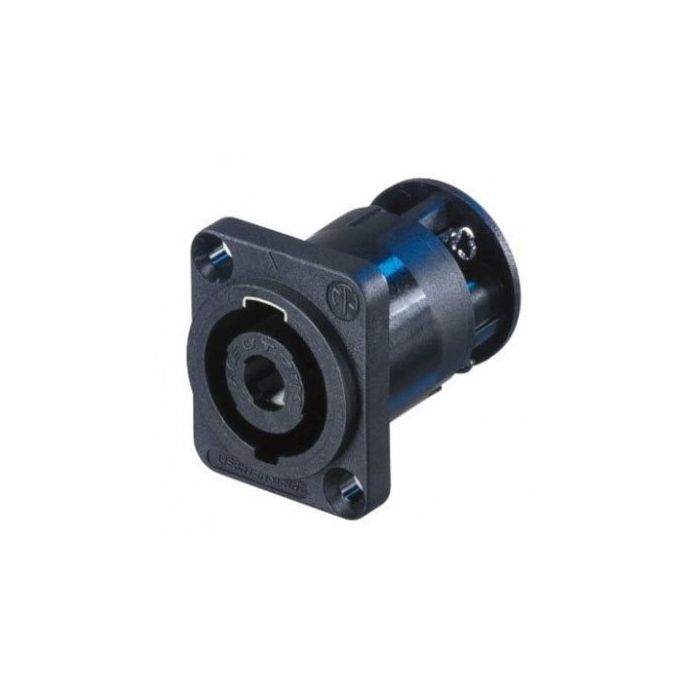

SpeakON 4 pole chassis connector, black D-size flange, countersunk thru holes, screw termination. This chassis connector is not airtight.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The Speakon receptacles are robust, versatile and easy to terminate with either flat tab (Faston) or screw terminals, pcb mount or soldering. They are available in 2, 4 and 8 pole configuration utilizing D size or G size panel cutout. The chassis connectors are airtight for audio applications (leakage 30 cm3/s at 10 kPa differential pressure) unless otherwise stated.

Body colour: Black

Features & Benefits:

- Rated current per contact: 30 Amp rms continuous
- Rated current per contact: 40 Amp audio signal, duty cycle 50 %
- Dielectric strength: 4kV peak
- Rated voltage: 250V (Insulation)
- Wiring: screw terminals
- Mounting direction: front and rear

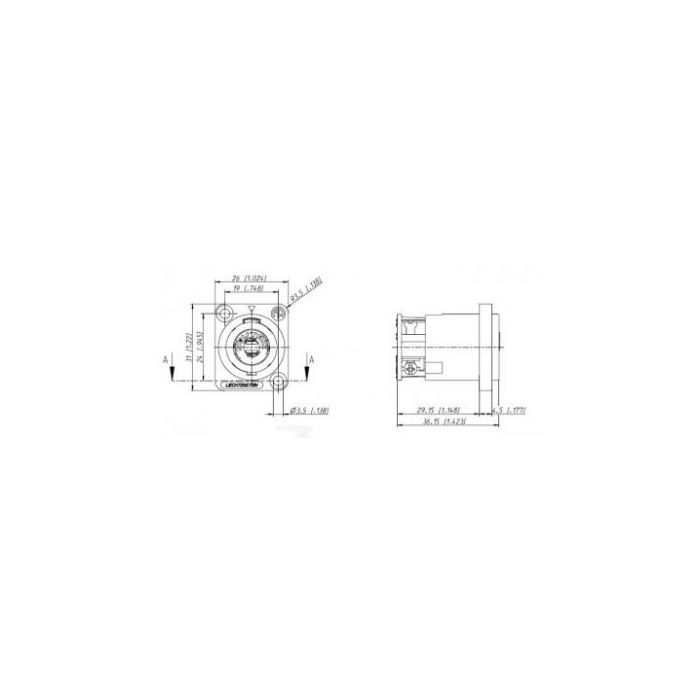

- Chassis shape: D
- Layout: standard hole position, thru holes

Priced per connector: available in any quantity
Packing information: Box quantity = 100

With all plastic chassis connectors, if rear mounting using rivets rather than screws for fixing, it is recommended that a washer is used at the rear of the connector to spread the load rather than let the rivet dig into the plastic.
