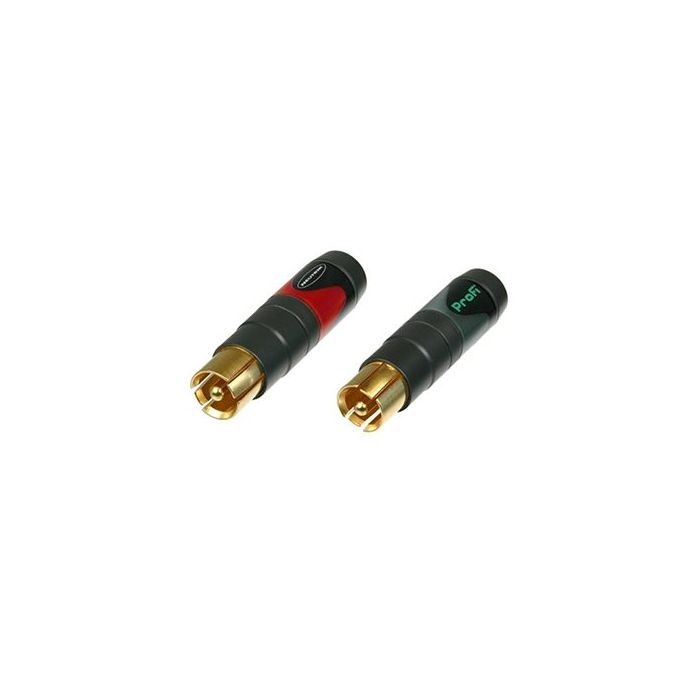

Neutrik Phono Plug (pair) Professional Nf2c-b/2 Connector

Neutrik Phono Plug (pair) Professional NF2C-B/2 CONF2CB2

Neutrik Professional `Phono Plug` (`RCA`- or `CINCH`- type). Ground before signal, gold contacts. Per pair - marked red and black.
Spring loaded ground contact: retractable element with separate wedge contacts which keeps the shell in the front position when engaged thus also providing a direct and strictly coaxial electrical connection from the socket via the shell to the cable shield. All metal design, machined brass, black ceated shell. Easy assembly and soldering (large soldering area, rapid-flow plating). High grade plastic insulator with high creep resistance.

Technical Specifications:

Rated current: 16 A
Rated voltage: 50 V ac
Insulation resistance: > 100 G
Dielectric strength: 1500 V dc
Capacitance (pin to shell): 7 pF

Features & Benefits:

- Makes ground before signal contact and breaks signal before ground
- No more disturbing noise and broken speaker cones
- Precisely machined to our demanding quality standards
- Neutrik unique chuck type strain relief
- Gold plated contacts
