Neutrik Pack Of 100 X Disassembled Powercon Mains Output 3 Pin 20a Cables Nac3fcb-1-d

Neutrik Pack of 100 x Disassembled PowerCON Mains Output 3 Pin 20A Cables NAC3FCB-1-D CONAC3FCB1D

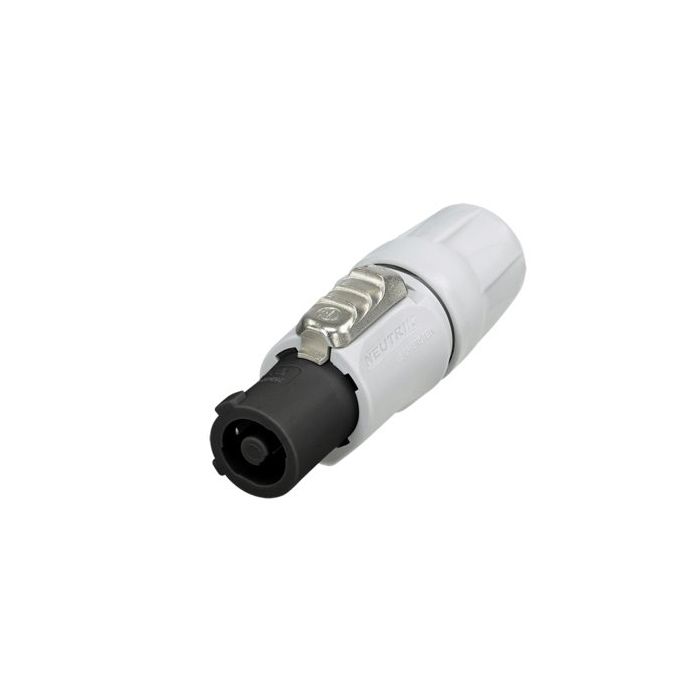

NAC3FCB-1-D Neutrik PowerCON out cable connector

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Circuit Breaking Capability (IEC 61984) when mated with powerCON XX Series Receptacles
NAC3FCA and NAC3MPA are used for power in to a unit
NAC3FCB and NAC3MPB are used for power out of a unit
Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating. Branded with unique hologram - guarantees genuine and authentic Neutrik product.

THESE ARE DISASSEMBLED CONNECTORS AND ARE ONLY AVAILABLE TO ORDER IN BOX QUANTITIES OF 100.

Number of contacts: 3 - for line, neutral and predating safety ground
Rated current per contact: 20 A rms
Rated voltage: 250 V ac
Dielectric strength: 4000 V dc
Cable O.D.: 5-15 mm
Wire size: 2.5 mm
Wire size: 14 AWG
Locking device: quick Lock

Packing information: Box quantity = 100
