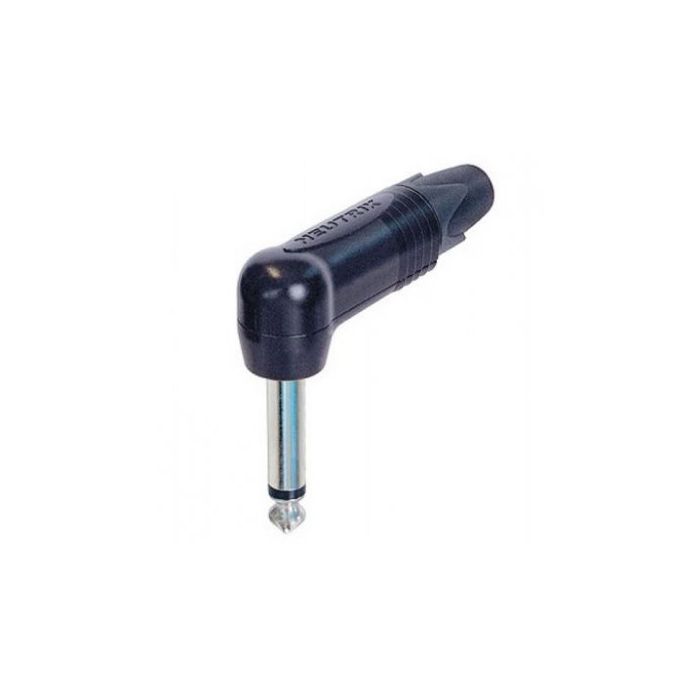

Neutrik Np2rx-bag Jack Plug Mono Right Angle Low Profile Black

Neutrik Jack Plug Mono Right Angle Low Profile Black Body NP2RX-BAG CONP2RXBAG

right-angle 1/4in professional phone plug

Nickel contacts and Black shell

Features & Benefits:

- All metal housing eliminates the plastic cover of the predecessor NPRCS and improves further durability and EMI protection
- Extra slim 1/4in plug for highest packing density
- Robust die cast shell in stylish design
- Improved chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact

Technical Specifications:

- Contact resistance depends on mating connector: mO
- Dielectric strength: 1kVdc
- Insulation resistance: > 2GO(initial)
- Insulation resistance: = 1GO(after damp heat test)
- Rated current per contact: = 15A
- Cable O.D: 4 - 7mm
- Wire size: 1mm
- Wire size: 18AWG

The heavy-duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4in plug with unique Neutrik chuck type strain relief on the market. The slim line shell with a width of 14.5 mm meets the most recent requirements for highest density jack fields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
