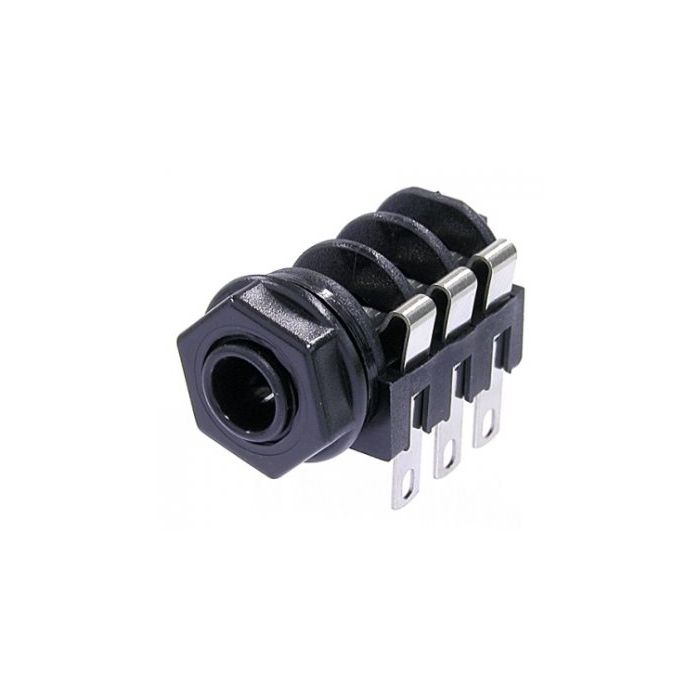

Neutrik Nmj3hf-s Stereo Jack Socket 1/4" M Series Connector

Neutrik Jack Socket Stereo 1/4" M Series NMJ3HF-S CONMJ3HFS

1/4 stereo jack, unswitched, with a full threaded nose and standard solder lugs, mounting nut included

Technical Specifications:

- Contact resistance: < 15 mO (inner)
- Dielectric strength: 1 kVdc
- Insulation resistance: 1 GO @ 500 V dc
- Rated current per contact: 3 A
- Insertion force: < 20 N
- Withdrawal force: < 10 N
- Lifetime: > 10000 mating cycles
- Panel thickness: < 3 mm
- Wiring: Horizontal PCB mount
- Locking device: Retention spring
- Mounting direction: rear
- Chassis shape: 11.2 mm
- Contact plating: 2 m Ag
- Contacts: Bronze (CuSn6)
- Shell: Polyamide (PA 6.6 15 % GR)
- Standard compliance: EIA RS 453, IEC 60603-11
- Solderability: Complies with IEC 68-2-20
- Temperature range: -25 C to +70 C
