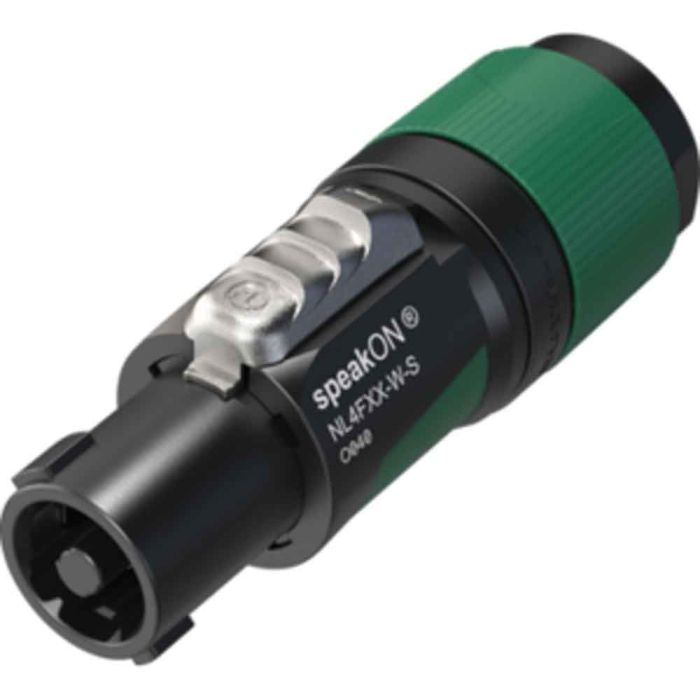

Neutrik NL4FXX-W-S, SpeakON 4 Pole Plug Connector, Cable 6-12mm

Neutrik NL4FXX-W-S 4 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 10 to 16 mm.CONL4FXXWL

Neutrik speakON connectors are the industry standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection.

Features and Benefits:

• Up to 37 Arms current rating
• IEC 61984, UL 1977 and CSA C22.2 No.182.3 certified
• Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
• Ergonomic design with slip-proof two-component moulded housing
• Unique Neutrik locking bushing and strain relief for cable diameters 10 mm to 16 mm
• Superior NEUTRIK quality standard, extremely robust and reliable
• Easy and reliable twist lock system
• Improved kink protection by two-component bushing

Technical Information

• Connector series: speakON 4 pole

Electrical

• Contact resistance: ≤ 2 mΩ
• Dielectric strength: 2.8 kVac
• Insulation resistance: > 10 GΩ (initially)
• Number of electrical contacts: 4
• Rating Europe: IEC 61984: 37 A 250 V AC
• Rating USA: UL1977: 35 A 250 V AC
• Rating Canada: CSA C22.2 No.182.3: 24 A 250 V AC
• Attention: This product is strictly not intended for use as an AC or DC power supply connector! CAUTION: NOT FOR INTERRUPTING CURRENT

Mechanical

• Cable O.D.: 6 -12 mm
• Lifetime: typically 5’000 mating cycles
• Wiresize (mm2): 1.5 – 4 mm2
• Wiresize (AWG): 17 – 11 AWG
• Locking device: Twist lock
• Termination: screw type terminals

Material

• Contact plating: Ag
• Contacts: Copper Alloy
• Insert: Polyamide (PA6.6)
• Locking element: Zinc diecast
• Shell: Polyamide (PA6) / TPE
• Strain relief: Polyketone
• Bushing: Polypropylene / TPE

Environmental

• Temperature range: -33 °C to +80 °C
• Protection class: IP20
• Flammability acc. to UL94: V-0
