Neutrik 5M Neutrik HDMI Multimedia Lead NKHDMI-5 NKHDMI-5 LEHDMIN5

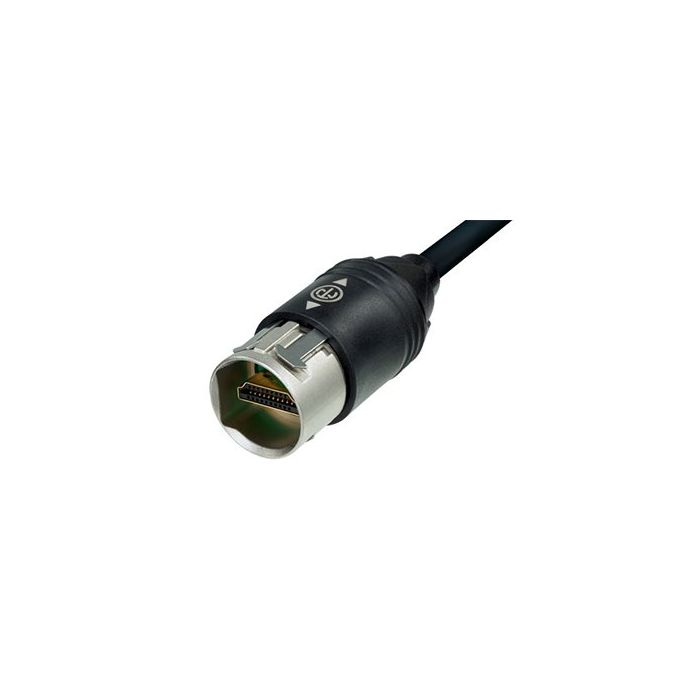

5M Neutrik HDMI Multimedia Lead

The HDMI 1.3a patch lead with overmolded flex relief and rugged metal cable carrier fit and lock with NAHDMI-W

The leads are available in 1m, 3m, 5m and 10m cable length.

Neutriks HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy.

Features & Benefits:

- HDMI 1.3a - data rate up to 3.5 GBit/s
- Dust and water resistant acc. to IP65 safety standard in combination with NAHDMI-W
- Push Pull mating design provides secure locking system if mated with NAHDMI-W
- Shielded connection - high noise immunity and EMI protection
- Removable rugged diecast cable carrier
- Mates with conventional HDMI receptacles if cable carrier is removed

Technical Specification:

- Contact plating: Au
- Contacts: Brass (CuZn39Pb3)
- Insert: PVC
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Flammability: UL 94 V-0
- Standard compliance: HDMI 1.3a specifications
- Temperature range: -25 C to +85 C
