Neutrik Neutricon Female Contact Gold Plated Pcb Bp1 Connector

Neutrik NeutriCON Female Contact Gold Plated PCB BP1 CONBP1

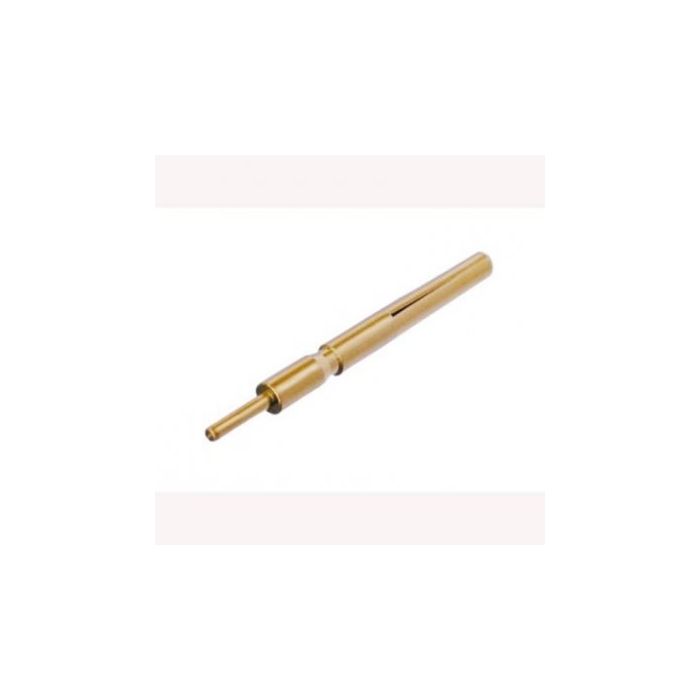

Neutrik Female PCB contact, gold plated, for cable connectors and receptacles.

The modular system of the miniCON series offers the possibility to assemble a desired connector from a wide range of various parts. Including additional parts for special versions (e.g. cable connector extension, crimp set, ...).

The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.


Features & Benefits:

- Contact configuration can be selected from 1 to 8 contacts
- Easy assembly: Contact soldering / crimping in disassembled condition avoids awkward wiring of high density contacts.
- Precise and robust all metal housing
- Push-pull self-locking system
- Coding system possible (polarization)

Technical Specifications:

- Number of contacts: 1 - 8 user selectable
- Rated current
- Solder contact: 7.5A
- Crimp contact: 5A
- Rated voltage (VDE 0110, section A): 50 V ac
- NeutriCON modular system circular connector
- The male and female insert can be assembled in the cable connector and chassis housing.
- Easy fast screwless assembly.
- Push-pull self locking system.
- Very robust, all metal housing.
