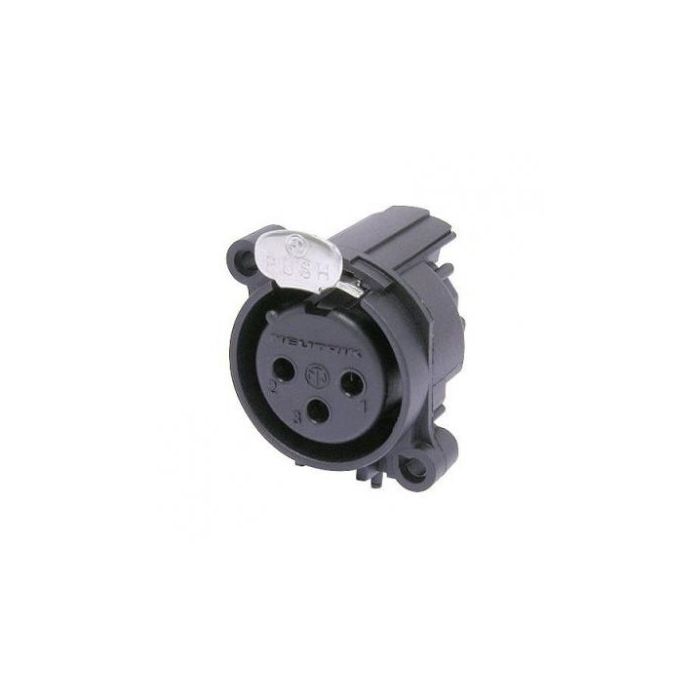

Neutrik Nc3faah1 Xlr 3 Pin Female Chassis Aa Series
£0.79
In stock
Only 353 left
SKU
FAV-CONC3FAAH1
Neutrik XLR 3 Pin Female Chassis AA Series Pin 1 to ch & shell gnd NC3FAAH1 CONC3FAAH1 By Neutrik
Neutrik XLR 3 Pin Female Chassis AA Series Pin 1 to ch & shell gnd NC3FAAH1 CONC3FAAH1
XLR 3 Pin Female Chassis AA Series Pin 1 to ch & shell gnd
Neutrik 3 pole female XLR receptacle
Plastic housing
Pin 1 connected direct to chassis and shell ground
Technical Specifications:
- Horizontal PCB mount.
- The AA Series is 100% compatible to the current A Series in terms of PCB layout and front panel cut out.
- New improved contact design for highest durability.
- High contact pressure.
- Selective gold plated contact area, where it mates with the male contact.
- Partial silver plating of the pin which makes contact with the PCB, best solderability.
- Push lever assembled
Priced per connector: available in any quantity
Packing information: Box quantity = 100
Brand | Neutrik |
---|---|
Manfacturer Code | Nc3faah1 |
