Neutrik Minicon Male Contact Gold Plated Solder Mps Connector

Neutrik MiniCON Male Contact Gold Plated Solder MPS CONMPS

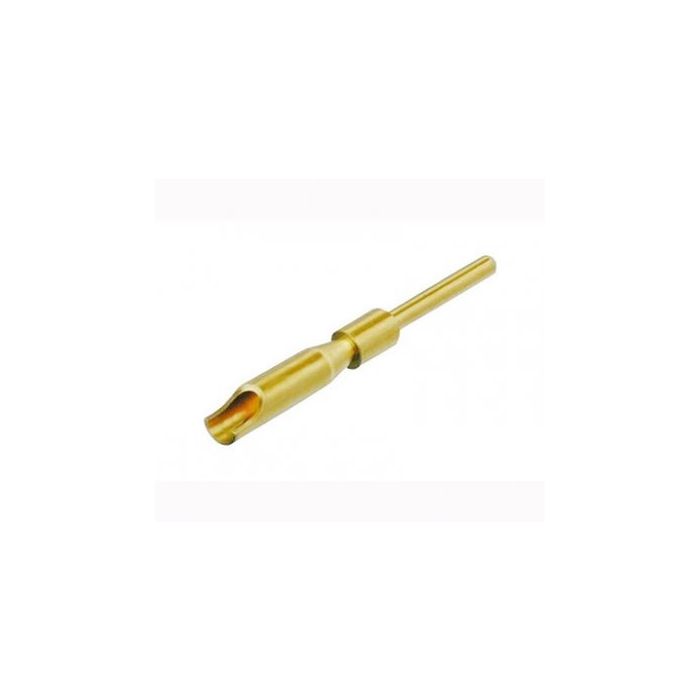

Male solder contacts, gold plated, for cable connectors and receptacles.
12 pole Miniature Connector. Modular very compact design. Up to 12 snap-in contacts per connector. Push-pull self-locking system. Precisely machined and robust all metal design. Gold plated contacts, crimp or solder. Excellent protection for a wide range of cable diameter.

Technical Specifications:

Receptacles for vertical and horizontal PCB mounting.
Number of contacts: 1 - 12 user selectable
Rated current: 3 A per contact
Rated voltage: 50 V ac
Dielectric strength: 1000 V dc
Contact resistance: = 8 m
Insulation resistance after damp heat test: > 500 M
Priced individually but sold in bags of 100
