Neutrik Ethercon Chassis D Series Idc Black Body Ne8fdv-yk-b

Neutrik EtherCON Chassis D Series IDC Black Body NE8FDV-YK-B CONE8FDVYKB

The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. Various wiring applications and colour coding are available.

- The all plastic A-Series offers the most space saving and cost effective design.
- The B-Series offers a space saving design and a rugged metal front plate.
- The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Features & Benefits:

- Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard

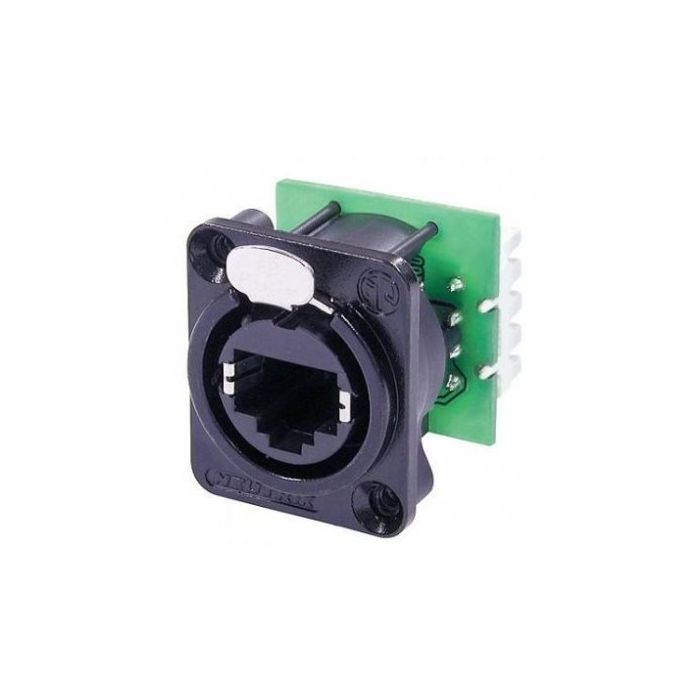

Panel mount receptacle with IDC terminals. D-sized black-chromed metal flange with the secure latching system.

Technical Characteristics:

- Max. panel thickness 4 mm
- Frequency bandwidth: 1 - 100 MHz
- Number of contacts: 8
- Rated current: 1.5 A
- AWG: 26 - 20
- Dielectric strength: 1000 V ac rms
- Contact resistance: < 10 m
- Insulation resistance: > 500 M
- Category 5e
